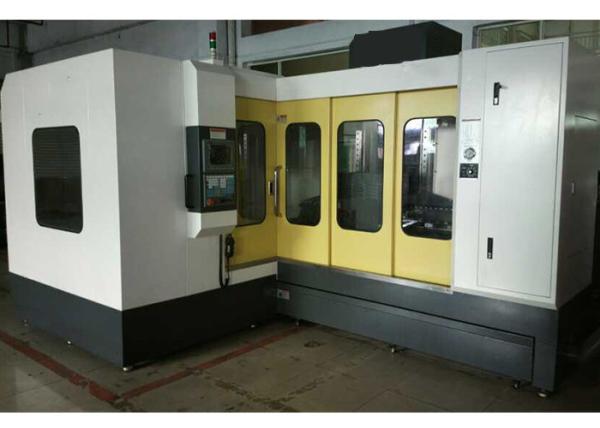

7.5 - 11kw Spindle Motor Gun Drill Operator With 5100 * 3600 * 2700mm Dimension
7.5 - 11kw Spindle Motor Gun Drill Operator With 5100 * 3600 * 2700mm Dimension
7.5 - 11kw Spindle Motor Gun Drill Operator With 5100 * 3600 * 2700mm Dimension
7.5 - 11kw Spindle Motor Gun Drill Operator With 5100 * 3600 * 2700mm Dimension
Specifications
Brand Name :
JOINT
Model Number :
TL1100
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Name :
cnc deep hole drilling machine
Innder diameter of drilling :
2.5-35mm
Max depth of drilling :
1200mm
Spindle rotation speed :
7000rpm
Table size :
1250*950mm
Drilling Feed Rate :
10-250mm/min
Spindle Motor :
7.5-11kw
Dimension :
5100*3600*2700mm
Description

Three Axis Cnc Deep Hole Gun Drilling Machine Making An Deep Hole 1200mm With Milling Function

Product Feature


1. Large hole process featuring high effciency, high precision and high fineness. The fineness reaches

( 0.4~0.8 ).


2. Equipped with powerful milling main spindle and CNC control system to achieve diversed drilling and milling order at one-time.


3. Equipped with rotating work bench to achieve multi-surface processing and reduces the clamping times and drill inclined hole.


Processing Range

Main application of CNC deep hole gun drilling machine:


1. processing of heat exchange parts such as chemical industry, generator, etc.


2. processing of the water hole, thimble hole, pin hole, electrothermal hole in Rubber and plastic mold industry.


3. processing of valves, dispensers, pumps and other parts in hydraulic machinery industry.


4. processing of engine block, oil supply system, drive system, steering machine and steering shaft of automobile and tractor industry.


5. processing of thrusters, landing gear and other parts in aviation and aerospace industry.


Specification

Model TL1100
Number of drilling spindle Uniaxial
Inner diameter of drilling 2.5-35mm
Max depth of drilling 1200mm
Size of working table 1250*950mm
X axis travel 1100mm
Y axis travel 1050mm
Z axis travel 1200mm
Drilling cutting feed rate 10-250mm
Max rotary speed of spindle 7000rpm
Spindle motor (servo)7.5-11kw
Moving motor from right to left on work table servo 3.0kw
Moving motor from up to down on spindle servo 2.0 kw
Moving the motor from front to back on spindle servo 1.5kw
Pressure of cutting pressure pump 80 kgf/cm²
Oil mass of oil pressure pump 6-60 L/min
Capacity of cutting oil tank 700 L
load capacity of working table 6000kgs
machine net weight 9500kgs
Machine power 26kw



Standard accessories

Taiwan spindle

Fanuc or Mistubishi controller

Spindle oil cooler + NSK Bearing

gundrill + precision guide sleeve and rubber guide

grinder machine

HIWIN linear way
