High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100
High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100
High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100
High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100
High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100
High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100
Specifications
Brand Name :
JOINT
Model Number :
CM-8100
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Table size :
820*1020mm
Name :
CNC engraving machine
X/Y/Z axis travel :
820/1000/350mm
Spindle taper :
ER32/BT30
X/Y/Z axis rapid feed :
8/8/8 m/min
Spindle rotation speed :
24000rpm
Width of gantry :
900mm
Spindle motor :
7.5KW
Description

24000rpm high precision CNC engraving machine CM-8100

High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100

◆ X, Y, Z axes are linear guide way pairs, the three-axis feed speed standard is 10 m / min,

◆ The structure of the machine is analyzed by finite element analysis, with high precision

and rigidity, and the smoothness of processing is maintained at high speed

◆ The spindle box of CM-8100 has a specially reinforced design, and the cutting strength is

higher than that of similar models by more than 20%.

◆ The key components such as couplings, bearings and ball screws are from Germany, Japan

and Taiwan top brand to ensure high quality of the machine.

◆ Shield top cover and ventilation system can be configured to achieve full sealing protection.

High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100

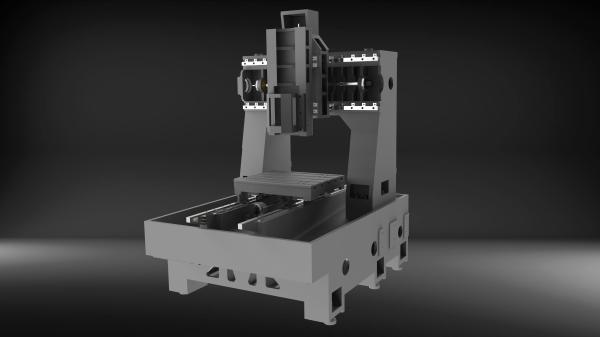

Adopted high quality castings and beam column gantry frame design, to ensure the overall

machine is suitable for rapid and stable operation. Adopted the 24000rpm electric spindle

for high-light engraving and milling. Can be widely used in one-time precision mold rough

finishing, mold copper electrode, aluminum parts processing, shoe mold manufacturing fixture

processing, watch industry. It has the characteristics of good finished product and high cost

performance.

High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100

High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100



High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100

Model CM-8100
Table size 820*1020mm
X/Y/Z travel 820*1000*350mm
Distance between tool head and table 105-455mm
Width of gantry 900mm
Spindle rotation speed 500-24000 rpm/18000rpm
Spindle Taper ER32/BT30
Spindle Motor 7.5kw
X/Y/Z axis Rapid feed 8 m/min
X/Y/Z axis Servo motor 1.8kw
X/Y/Z axis Cutting feed 15/15/10 m/min
Dimension 3300*2400*2980mm
Net weight 5500kg
Max load of table 900kg

High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100

Taiwan LNC 5800 Control system Auto lubrication system
ER32/7.5kw /24000RPM brand Spindle Work-piece cooling system
Japan Yaskawa three-axis servo motor Hand hold operating unit
Taiwan C5 grade precise ball screw Internet port
Japan three-axis NSK P4 bearing Working light
Spindle oil coolant Guide rail cover
Taiwan Liner way Tool and toolbox
Pneumatic system

High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100
High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100

High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100
High Speed CNC Engraving Milling Machine 24000RPM ER32 Spindle CM-8100
