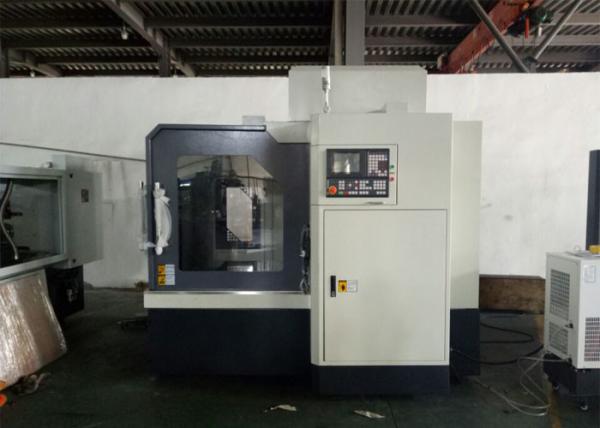

High Rigidity 24000 / 18000rpm CNC Engraving Milling Machine For Mould Processing
High Rigidity 24000 / 18000rpm CNC Engraving Milling Machine For Mould Processing
High Rigidity 24000 / 18000rpm CNC Engraving Milling Machine For Mould Processing
High Rigidity 24000 / 18000rpm CNC Engraving Milling Machine For Mould Processing
Specifications
Brand Name :
JOINT
Model Number :
CM860
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Table size :
800*600mm
color :
optional
Controller :
LNCand others
width of gantry :
650kgs
Spindle taper :
BT30
Max load of table :
400kgs
spindle speed :
24000/18000rpm
Description

China High speed metal cnc engraving and milling machine for mold making

Product Feature

1. High rigidity machine body and the processing is stability during high rotation speed

2. Special reinforced spindle case design for CM860, The cutting strength increased much

3. Spindle,ball screw, controller and other key parts are imported from germany Japan and taiwan top brands.

4. CM860 Models can be equipped with tool magazine

5. CM860:5.5KW ,ER25,24000Rpm standard spindle motor ,

6. 5.5kw,BT30,18000/24000RPM is optional

Features:

1. Taiwan LNC Control system and Yanchuan Servo Motor

2. The main parts of the fuselage are cast with high quality cast iron

3. Three axes adopt Taiwan brand line rail

4. High rigidity, high wear resistance, low noise

Details:

1. Fully enclosed protection for machine tools

2. Good protection performance and long service life

3. High speed motorized spindle

4. German Coupling

5. Auto lubrication system

Specification of cnc engrave machine for metal

Model CM860
Table size 800*600mm
X axis travel 680mm
Y axis travel 760mm
Z axis travel 330mm
Width of gantry 760mm
Spindle taper ER25/BT30/ER32
Spindle Rotation speed 500-24000/18000rpm
Spindle motor 5.5kw
X/Y/Z axis servo motor 0.85kw
Distance between tool head and table 50-380mm
X/YZ axis feed speed 8m/min
X/Y/Z axis rapid speed 10m/min
Dimension 2510*3370*2310mm
Net weight 3500kgs
Max load of table 400kgs

Optional Accessories

Tool setting gauge

Syntec 11MA/21MA Controller

Graphite machine
