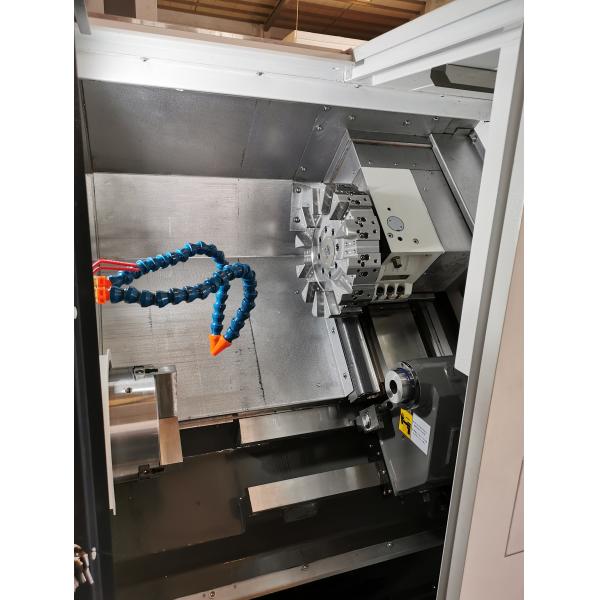

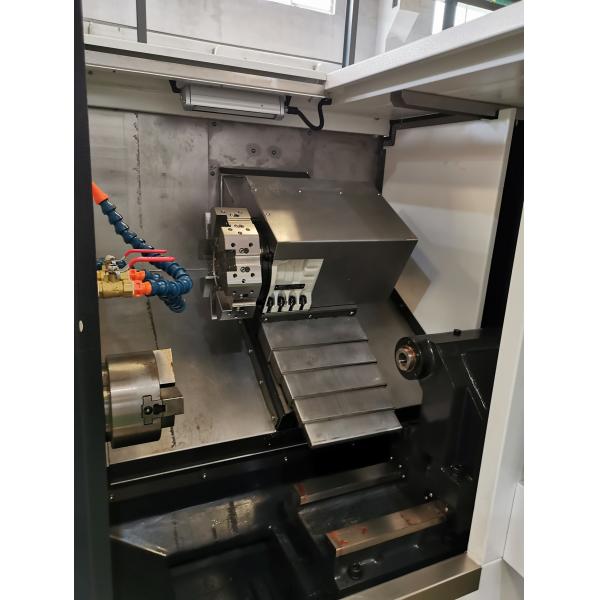

7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
Specifications
Brand Name :
JOINT
Model Number :
HTC-4640
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, T/T
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Max swing diameter over bed (mm) :
460
Max processing diameter over slide :
170 drilling/ 200 excircle
Max processing length :
300
Spindle form :
A2-5/A2-6
Spindle motor rate :
7.5kw
Max spindle rotation speed :
4500/4000*
Spindle hole diameter :
56/66
Bar diameter :
42/52
X axis travel :
210
Z axis travel :
400
Tool turret center height :
80
X/Z axis rapid moving speed :
20/16
X/Z axis repeat positioning accuracy :
0.004/0.006
Description

Characteristics:

1. Inclined bed integral casting, two axis rail, suitable for high precision machining

2. Configure the GSK system

3. Optional solid or hollow hydraulic chuck, hydraulic station (Taiwan optional) and oil cylinder (Taiwan)

4. Adopt Taiwan high speed precision spindle, Japan precision bearings



Parameters sheet:

ModelHTC-4640
Max swing over bedØ460mm
Max turning diameter on carriageØ170 drilling/ Ø200 excircle
Max cutting length300mm
TravelMax Limit travelX axis470mm
Z axis350mm
X/Z axis connection wayDirection connection
X/Z axis position accuracy0.004/0.006mm
Rapid FeedMax moving speedX axis20m/min
Z axis16m/min
Spindlespindle rotation speed (stepless)4500/4000*rpm

Spindle head type
(chuck is changeable)

A2-5/A2-6
Spindle taper hole diameterØ 56mm
Max bar diameterØ 45mm
Spindle motorrate

5.5KW servo spindle motor
and drive

Dimension2460*1615*1870mm



Standard accessories:
1. GSK980TDI control system and 7.5kw GSK servo spindle motor
2. Taiwan A2-5 spindle, spindle hole 56, imported bearing and ball screw, linear guideway, 3000rpm
3. 6'' Taiwan hydraulic chuck and oil cylinder, Chinese hydraulic station, imported hydraulic tailstock
4. 12 positions servo tool turret
5. Fully closed cover
6. Auto lubrication system
7. Cooling system
8. Hand unit
9. Working light
10. Manual tailstock
11. Technical documents
12. Accompanied toolbox

Optional accessories:

1. SYNTEC 22A system and servo motor, and SYNTEC matched spindle motor
2. FANUC OITF(5) system
3. 8'' hollow hydraulic chuck change to 10'' hollow hydraulic chuck
4. 4 positions electric tool turret
5. 8 positions Chinese servo tool turret


Overview:

7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck

7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck

7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck

7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck

Main Parts Brand:

NoNamePlantOriginal placeNote
1Machine bodyJOINTChina
2Control systemFANUCJapan
3X/Z axis motorSYNTECTaiwan
4X/Z axis driveFANUCJapan
5SpindleROYALTaiwan
6Servo spindle motorCTBChina
7Ball screwTHKJapan
8Linear guidewayTHKJapan
9CouplingR+WGermany
10Lubrication systemHERGChina and Japan venture
11Cooling systemROCOIChina
12TransformerFUJIEChina
13Main pneumatic elementAirTACTaiwan
14Main electrical elementSchneiderChina and France venture
15DC stablized powerMWTaiwan
Package:
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck
