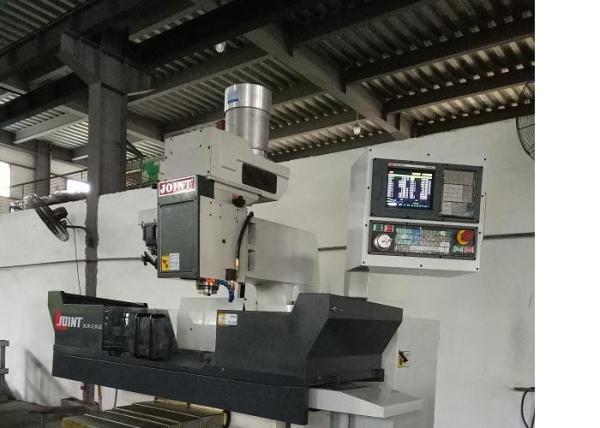

High Wear Resistance CNC Vertical Milling Machine For Metal Processing 3HP Motor
High Wear Resistance CNC Vertical Milling Machine For Metal Processing 3HP Motor
Specifications
Brand Name :
JOINT
Model Number :
6KI
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Diameter of spindle quill :
110mm
Travle of spindle quill :
150mm
Max distance between spindle and table :
430mm
Spindle taper :
NT40
Dimension :
1900*1750*2450mm
Weight :
2200kgs
color :
Optional
preicision :
high precision
Description

3HP motor special design NC milling machine for metal processing

1. Japanese nsk Precision bearing and Hsing Tong Xiang / Hong Tai Fine quality Ball Screw

2. Realization of Three-axis Linkage by Servo Motor

3.Fit for small metal parts processing

4. Suitable for many varieties, small batch and parts machining accuracy consistency requirements high mechanical processing and small die manufacturers.

5.Machine body has the characteristics of high strength, good stability and not easy to deform.

Features:

1. Guide way has the characteristics of high rigidity, high wear resistance

2. Design of triaxial hardened sliding track

3. Good control characteristics, large torsion, good follow precision, fast reaction and good stability

4. Reasonal price

5. Good follow precision, fast reaction and good stability

6. Special design and high accuracy

Main details

1. The three coordinate axes of Japan, Yaskawa motor or Huada motor.

2. A good waterproof effect

3. Guide rail, ball screw with centralized automatic lubrication system

4. Circle and position machining can be realized by adding NC rotary table

5. Schneider frequency converter with strong function, compact structure and easy to install

Model 6KI
Table size 1370*330mm
T-slot(W*N*D) 16*3*68mm
X axis travel 800mm
Y axis travel 330mm
Diameter of spindle quill 110mm
Travel of spindle quill 150mm
Max distance from the spindle nose to table 430mm
Spindle rotation speed 60-4200/(stepless)
Spindle Taper NT40
Spindle Rated power 5HP
Dimension 1900*1750*2450mm
Net weight 2200kgs

High Wear Resistance CNC Vertical Milling Machine For Metal Processing 3HP Motor
