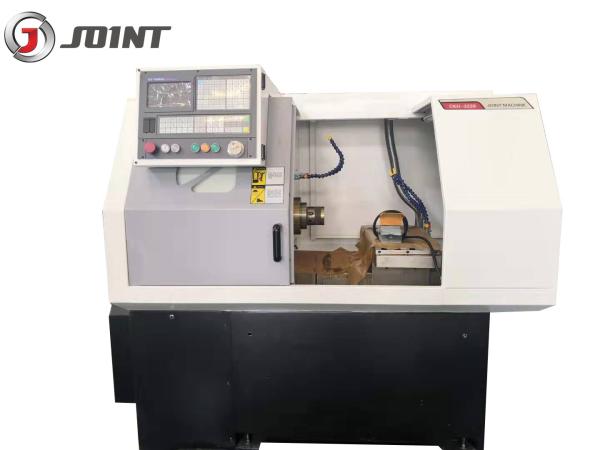

CKH3628 Horizontal CNC Turning Flat Bed CNC Lathe Machine A2-5 Spindle Head Type

1. X-axis and z-axis adopt Taiwan precise linear guide rail from, and the running speed is 20M/min.

2. Screw pitch error is compensated by laser interferometer, which can improves the machining accuracy.

3. Equipped with high speed spindle, with high precision, high speed, smooth operation and other characteristics. Optional hydraulic chuck and elastic chuck, can effectively save the workpiece clamping time.

4. Suitable for processing the inner and outer surfaces of shaft parts, threads, arcs, cones and rotations.

5. Especially suitable for the automobile industry, electronic industry, motorcycle, home appliances, furniture, lighting and other industries, the rotary parts for efficient, large quantities, high precision processing.

1. The split cast iron flat bed structure has good vibration resistance and high overall rigidity.

2. The maximum spindle speed is 3000RPM, with high accuracy, good performance and stable quality,

suitable for high-speed processing, especially for parts with high surface quality requirements.

3, Taiwan brand linear guide, zero clearance, all-round carrying, combined with high-precision ball screws

can completely eliminate the errors caused by long-term processing.

4. The whole bed is equipped with fully enclosed sheet metal, which has superior waterproof performance

and convenient chip removal.

5. High-speed rotary cylinder to meet the stability of high-speed cutting and high-speed operation of the spindle.

6. Row-type knife holder, fast tool changing speed, can complete more complicated, difficult and high-precision parts processing at one time, reduce processing auxiliary time and improve production efficiency.

7. Application Taiwan's SYNTEC or GSK CNC system, in addition to the traditional RS-232 interface,

it also has an advanced 10/100 MHz Ethernet network and a hot-swappable CF CARD interface, which speeds up program transmission speed. Improved convenience and stability.

8. Servo motor adopts SYNTEC or GSK motor, which has the characteristics of large torque and fast response.
