Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225
Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225
Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225
Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225
Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225
Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225
Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225
Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225
Specifications
Brand Name :
JOINT
Model Number :
BTMC-1225
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Name :
Double Column machine center
Model :
BTMC-1225
Table size :
900*2500mm
Travel :
2500*1200*800mm
Spindle rotation speed :
8000rpm/ 12000rpm / 15000rpm
Spindle taper :
BT50/ BT40
Spindle motor :
15-18.5kw
Load weight :
3000kgs
Net weight :
15000kgs
Description

Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225

Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225

1. Gantry machine center applies fixed beam type double vertical shafts gantry framework structure with

cross layout, stable and reliable machine tool.

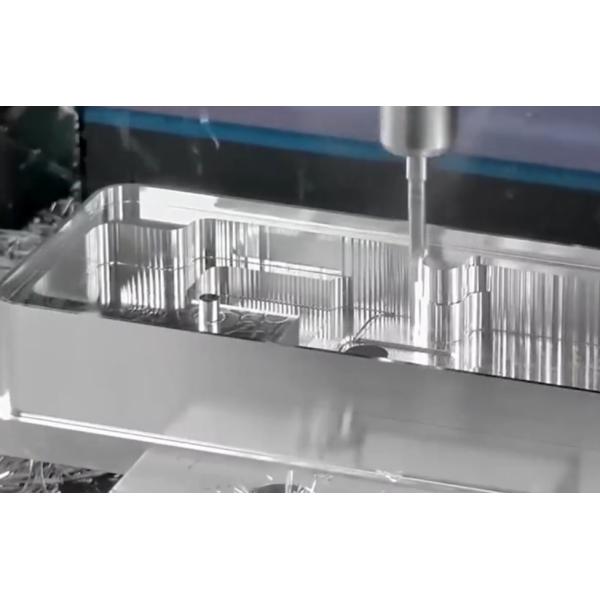

2. Grantry machining center is mainly used in large size parts, sheet machining ,disc piece ,housing piece,

mold ect. With high accuracy, multi-process, complex shapes. Within one-shot clamping, it can continuously complete milling, drilling, flaring,reaming, boring, tapping, 2D and 3D curve and bevel precision machining.

3. Bed, worktable, vertical shaft, beam, axis ect apply high strength cast iron material. Model is of resin

sand technology. Stress is removed by secondary time effect treatment.

Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225

Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225

Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225

Model BTMC-1225
Table size 900*2500mm
X aixs travel 2500mm
Y axis travel 1200mm
Z axis travel 800mm
Gantry width 1220mm
Distance between spindle and table 120-920mm
Spindle rotation speed 6000rpm (BT40-10000/12000/15000Rpm optional)
Spindle taper BT50 (BT40 Direct connection spindle )
Spindle Motor 15-18.5kw
Work table Tslot 7-22*125mm
X axis rapid feed 12m/min
Y axis rapid feed 12m/min
Z axis rapid feed 8m/min
Cutting feed 8m/min
Positioning accuracy 0.01mm/m
Min.set moving unit 0.001mm
Net weight 15000kgs
Max load of table 3000kgs
Dimension 8570*3210*3920mm

Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225

1. FANUC System

2. Heat exchaner in electric control cabinet
3. Water tank cooling device

4. Manual pulse generator
5. Automatic lubrication device

6. Workong lamp
7. Outer protective cover

8. Three-color warning lamp
9. Spindle blowing device

10. RS-232 standard output interface
11. Handle air gun

12. LCD
13. Water gun

14. Tool and tool box
15. Electric control cabinet

16. Operation manual
17. Transformer
Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225


1. Mitsubishi system
2. ATC (Manipulator)
3. Spindle oil cooling device
4. Water through spindle center device
5. Disk type oil-water separator
6. CNC rotation worktable (the 4th axis)
7. Air conditioner in electric control cabinet
8. fully-enclosed optical scale detecting system
9. Automatic tool length measuting system
10. Manual / Semi*autoatic right-angle head
12. ZF gear box

Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225

Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225

Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225Heavy Duty Double Column CNC Milling Machines , Gantry Type CNC Machine Center BTMC-1225
