Specifications
Brand Name :
JOINT
Model Number :
84AHR
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Travel :
33.07*16.54 inch
Auto crossward feed :
0.1-8
Dimension :
2360*2190*2300mm
Z axis :
Elevating motor
Hydraulic motor :
3*4
Name :
Surface grinding machine
Description

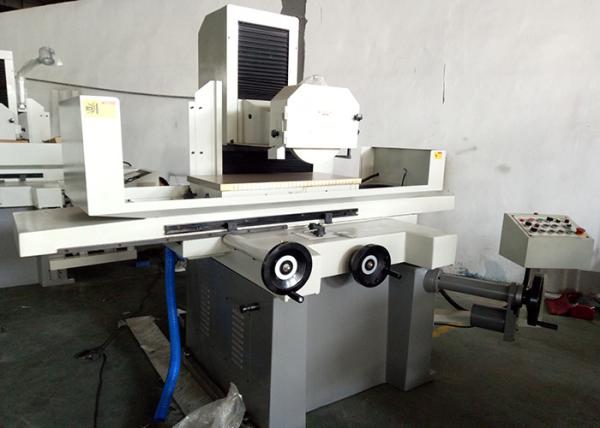

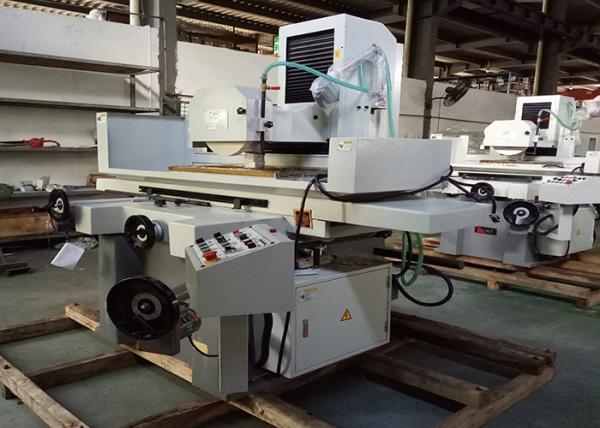

33.07*16.54 Inch Travel Surface Grinding Machine 0.1 - 8 Auto Crossward Feed

Quality Guarantee:

1. Quality is our forte and we have clients spreading all over the world.

2. We are committed to a well-defined and self-framed quality policy.

3. The policy revolves around through and repeated checking of the turret milling machine .

4. We will supply enough spare parts and accessories with our machine when shipment.

5. Within one year after receiving our machine, If there are any damaged parts or accessories, we will supply them to you by air-mail free of charge.

Our service:

​1. After the warranty, we charge only cost price for maintaining the turret milling machines.

2. Your inquiry will be replied in 24 hours.

3. There is more industry technology experience for 23years with our manufactures.

4. To offer free spare parts and service within one year of warranty.

5. Technology Support Provide operation video for training.

6. Professional after-sales service team.

7. Give reasonable offers with the best quality.

Specification

Model 84AHR
Table size 800*400mm
Travel ( Longitude ) 840mm
Travel ( Crossward ) 420mm
Table side way Slide way
Max.distance from spindle center to working table 700mm
Auto crossward feed 0.1-1
Crossward feed of hand wheel ( 1Rev ) 5
Crossward feed of hand wheel ( 1Div ) 0.02
Auto vertical feed -
Vertical rapid moving feed -
Vertical feed of hand wheel ( 1Rev ) 2
Vertical feed of hand wheel ( 1Div ) 0.01
Rotation speed 1450rpm
Grinding wheel size Ø355*(20-45)*Ø127
Spindle motor 5*4
Hydraulic motor 3*4
Crossward driven motor 0.08*4
Vertical driven motor 0.1*4
Coolant pump motor -
Dust-clean motor -
Dimension ( L*W*H ) 2360*2190*2300mm
Net weight 3000kg

FAQ

Q: What is your terms of payment ?

A: 30% in advance.and the rest payment should pay before delivery.

Q: How many years have your company established?

A: 23 years, our company built in 1995.

Q: How can I get a quotation?

A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.

Q: Can you provide customized machine or SPM (Special purpose machine)?

A: Yes, we provide smart solutions for our customer, in order to increase efficiency.

Q: Can you provide training for operation CNC machines?

A: Yes, free training in our factory is available.

Q: How about your price?

A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q: What's your warranty terms?

A: We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details.

Q: What’s the delivery time, and what’s the package?

A: Normally the delivery time is about 10-15 days if the goods are in stock, 25-30 days if the goods are not in stock. All our machinery are packed with sea worthy package.
