Specifications
Brand Name :
JOINT
Model Number :
84MSI
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Table size :
800*400mm
Auto vertical feed :
0.001-0.999
Coolant pump motor :
0.12*2
Z axis :
Servo motor
Dimension :
2300*3850*1980mm
Name :
Surface grinding machine
Description

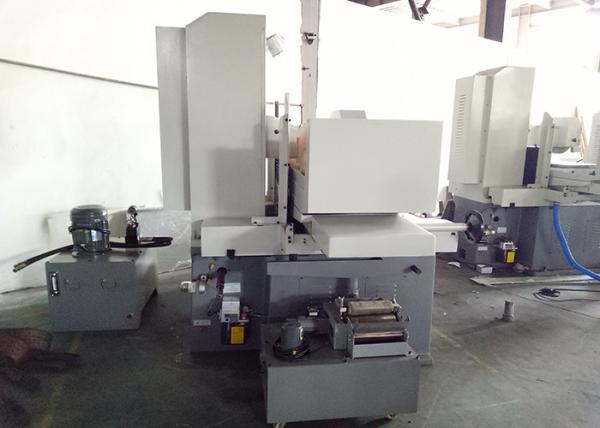

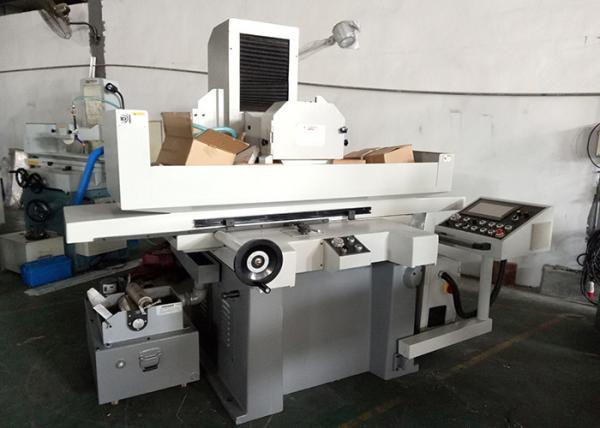

800*400mm Table Surface Grinding Machine Z axis Servo Motor 84MSI

Product Details:

1. Imported high accuracy grinding head.

2. Hydraulic system ensure high precision of machine and high stability of operational.

3. High precision and corrosion resisting.

4. Our custom-made machines with competitive price and the excellent service have gained us a great reputation from domestic and foreign customers.

5. Suitable to grinding surface and complex form surface by form dressed whell.

Our Services:

1. Technical support online service provided.

2. During this period of one year warranty , if the turret milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.

3. Questions will be replied within 24 hours.

4. After the warranty, we charge only cost price for maintaining the turret milling machines.

5. Professional after-sales service team.

Specification

2300 * 3850 * 1980mm Benchtop Surface Grinder Corrosion Resisting Multifunction

Model 84MSI
Table size 800*400mm
Travel ( Longitude ) 840mm
Travel ( Crossward ) 420mm
Table side way Slide way
Max.distance from spindle center to working table 700mm
Auto crossward feed 0.1-8
Crossward feed of hand wheel ( 1Rev ) 0.1/1
Crossward feed of hand wheel ( 1Div ) 0.001/0.01
Auto vertical feed 0.001-0.999
Vertical rapid moving feed 150
Vertical feed of hand wheel ( 1Rev ) 0.01/1
Vertical feed of hand wheel ( 1Div ) 0.001/0.1
Rotation speed 1450rpm
Grinding wheel size Ø355*(20-40)*Ø127
Spindle motor 7.5*4
Hydraulic motor 3*6
Crossward driven motor 9NM
Vertical driven motor 1*4
Coolant pump motor 0.12*2
Dust-clean motor -
Dimension ( L*W*H ) 2300*3850*1980mm
Net weight 3000kg

FAQ

Q: What is your terms of payment ?

A: 30% in advance.and the rest payment should pay before delivery.

Q: How many years have your company established?

A: 23 years, our company built in 1995.

Q: How can I get a quotation?

A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.

Q: Can you provide customized machine or SPM (Special purpose machine)?

A: Yes, we provide smart solutions for our customer, in order to increase efficiency.

Q: Can you provide training for operation CNC machines?

A: Yes, free training in our factory is available.

Q: How about your price?

A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q: What's your warranty terms?

A: We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details.

Q: What’s the delivery time, and what’s the package?

A: Normally the delivery time is about 10-15 days if the goods are in stock, 25-30 days if the goods are not in stock. All our machinery are packed with sea worthy package.
