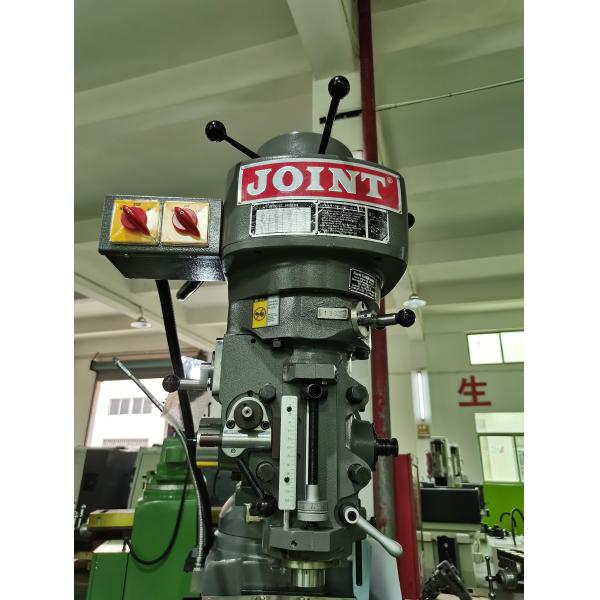

Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper

Specifications

Brand Name :

JOINT

Model Number :

4VB

Certification :

ISO 9001:2015

Place of Origin :

China

MOQ :

1 SET

Price :

NEGOTIATION

Payment Terms :

L/C, T/T

Supply Ability :

1000 SETS/YEAR

Delivery Time :

NEGOTIATION

Packaging Details :

Wooden pallet/ wooden case

Table size :

1270*254*90mm

Three axes travel :

900/440/390mm

Max distance from the spindle nose to table :

420mm

Spindle rotation speed :

80-5440rpm(60HZ)

Package way :

Pallet and plywoode case

Dimension :

1500*1700*2150mm

Description

Product main advantages:

1. Spindle tolerance: 2μ.
2. Twice precision scraping can ensure processing quality.
3. Taiwan original milling head, Japan NSK P4 precision spindle bearing.

4. We are a manufacturer of turret milling machine since 1995. We started at the very first begining of it.

And we were once honored by Ten Top Brand.

It is suitable for precision electronic machinery, presicion electronic devices, mold parts and other precision parts of the hole, groove, frame.

Specification:

Model				4VB
Table size			mm	127025490
Travel		X axis	mm	900
		Y axis	mm	440
		Z axis	mm	390
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	420
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	60-4530 (16 grade)
	Rotation speed (Step speed milling head)	60HZ	rpm	80-5440 (16 grade)
	Rotation speed (Variable speed milling head)	50HZ	rpm	50-3500
	Rotation speed (Variable speed milling head)	60HZ	rpm	60-4200
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
	Rotation speed (Inverter speed milling head)	60HZ	rpm	0-4200
	Taper			R8 (NT30)
	Rated power		HP	3HP
Tilt angle		Forward and Backward		±45°
Tilt angle		Left and Right		±90°
Dimension			mm	150017002150
Net weight			kg	1350

VA series standard accessorie:

1. Taiwan original step milling head

2. Working light

3. Guideway cover

4. M12 clamping kit

5. R8 collet (7 pcs)

6. Draw bar

7. Manual oil pump

8. Accompanied toolbox

Optional accessories:

1. 6'' or 8'' vise

2. Electric power feed (2 axis and 3 axis)

3. Mechnical power feed (2 axis and 3 axis)

4. Water pump+water tray

5. Dro(2 axis or 3 axis)
