1270*254mm Working Table Turret Milling Machine 4EB 3HP 0.005mm Tolerance
1270*254mm Working Table Turret Milling Machine 4EB 3HP 0.005mm Tolerance
Specifications
Brand Name :
RATEE
Model Number :
4EB
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Table size :
1270*254*90mm
Max distance from spindle nose to table :
400mm
Spindle rotation speed :
66-4540rpm(50HZ)
OEM service :
Provide
Dimension :
1500*1700*2150mm
Spindle Taper :
R8(NT40)
Description

Product Characteristics:

1. Taiwan parts assembled in China with inner strict standard.

2. Hard grinding guide rail, thick bed body, casting aging treatment, machine durable

3. Productivity, high efficiency, strong cutting machine

Parameters Sheet:

Model 4EB
Table size mm 1270*254*90
Travel (Longitude X) mm 900
Travel (Crossward Y) mm 370
Travel (Vertical Z) mm 360
Travel of spindle quill mm 127
Max distance from spindle nose and table mm 400
Spindle Rotation speed Step speed milling head 50HZ 66-4540
60HZ 80-5440
Variable speed milling head 50HZ 40-3125
60HZ 503750
Inverter speed milling head 50HZ 0-4200
60HZ 0-4200
Spindle taper R8(NT30)
Spindle rated motor 3HP
Tilt angle (Forward and backward) ±45°
Tilt angle (Left and right) ±90°
Dimension mm 1500*1700*2150
Net weight kg 1500

Standard Accessories:

1. Working light

2. Way cover

3. R8/3HP spindle Taiwan parts step speed milling head

4. R8 inch draw bar

5. Technical document

6. Accompanied toolbox

Optional accessories:

1. R8 (7 pcs) milling chuck

2. M12 clamping kits

3. 6' vise

4. Power feed

5. 2 axis/3 axis DRO

Overview:

1270*254mm Working Table Turret Milling Machine 4EB 3HP 0.005mm Tolerance

1270*254mm Working Table Turret Milling Machine 4EB 3HP 0.005mm Tolerance
This is square type step milling head(optional)

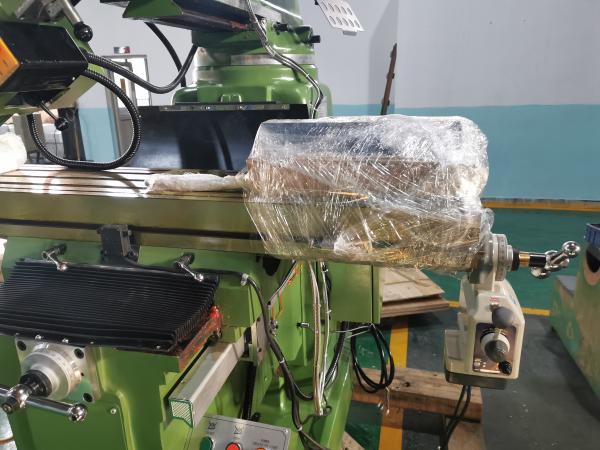

Package:
1270*254mm Working Table Turret Milling Machine 4EB 3HP 0.005mm Tolerance
1270*254mm Working Table Turret Milling Machine 4EB 3HP 0.005mm Tolerance
1270*254mm Working Table Turret Milling Machine 4EB 3HP 0.005mm Tolerance
1270*254mm Working Table Turret Milling Machine 4EB 3HP 0.005mm Tolerance
1270*254mm Working Table Turret Milling Machine 4EB 3HP 0.005mm Tolerance
