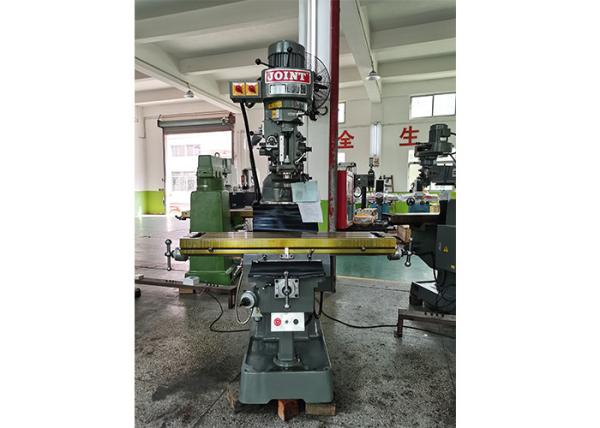

Taiwan Original Milling Head Strengthened Machine Fuselage Turret Milling Machine
Taiwan Original Milling Head Strengthened Machine Fuselage Turret Milling Machine
Specifications
Brand Name :
JOINT
Model Number :
4VA
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Table size :
1270*254*90mm
X/Y/Z axis travel :
900/405/350mm
Travel of spindle quill :
127mm
Max distance from spindle nose to table :
450mm
Spindle rotation speed :
80-5440rpm
OEM :
We can provide
2 axis/3 axis DRO :
Optional acciessories
Dimension :
1500*1700*2200
Description

Product Characteristics:

1. Suitablel for precision electronic machinery, precision electronic components, mold parts and other precision parts of hte hole, groove, frame.

2. Second precision scraping assembly process, to ensure the precision of the machine.

3. High quality Taiwwan original milling head, Japanese NSK P4 precision spindle bearing. Spindle runout: 0.003mm

4. 300 spindle test rod end runout 0.02mm.

Parameters Sheet:

Model 4VA
Table size mm 1270*254*90
Travel X axis mm 900
Y axis mm 405
Z axis mm 350
Travel of spindle quill mm 127
Maximum distance from spindle nose to table mm 450
Spindle Rotation speed
(Step speed milling head)		 50HZ rpm 60-4530 (16 grade)
60HZ rpm 80-5440 (16 grade)
Rotation speed
(Variable speed milling head)		 50HZ rpm 50-3500
60HZ rpm 60-4200
Rotation speed
(Inverter speed milling head)		 50HZ rpm 0-4200
60HZ rpm 0-4200
Taper R8 (NT30)
Rated power HP 3HP
Tilt angle Forward and Backward ±45°
Left and Right ±90°
Dimension mm 1500*1700*2200
Net weight kg 1400

Standard Accessories:

1. Working light

2. Way cover

3. R8/3HP spindle Taiwan parts step speed milling head

4. R8 inch draw bar

5. Technical document

6. Accompanied toolbox

7. M12 clampking kit

8. R8 milling chuck(7 pcs)

Optional accessories:

1. R8 (7 pcs) milling chuck

2. M12 clamping kits

3. 6' vise

4. X axisp ower feed or Y axis power feed or Z axis elevating motor

5. X/Y two axis/ X/Y/Z three axis DRO

Overview:

Taiwan Original Milling Head Strengthened Machine Fuselage Turret Milling Machine
Taiwan Original Milling Head Strengthened Machine Fuselage Turret Milling Machine
Taiwan Original Milling Head Strengthened Machine Fuselage Turret Milling Machine
Package:
Taiwan Original Milling Head Strengthened Machine Fuselage Turret Milling Machine
Taiwan Original Milling Head Strengthened Machine Fuselage Turret Milling Machine
Taiwan Original Milling Head Strengthened Machine Fuselage Turret Milling Machine
