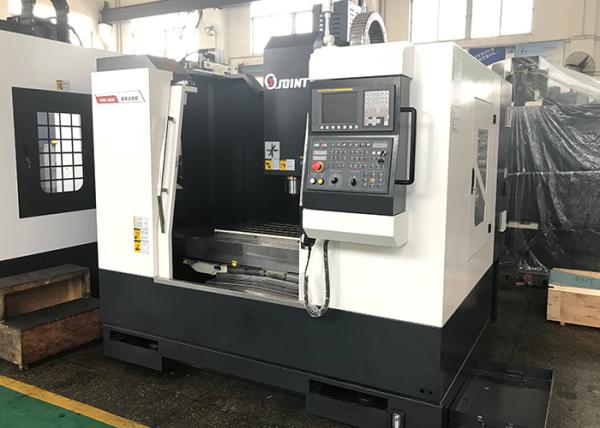

Vertical Type CNC Machining Center For Making Mould High rigidity VMC850B

Quick details:

1. CNC vertical machine center price VMC850B is composed of base, column, middle sliding saddle, table, headstock, operation panel, tool magazine, pneumatic system, lubricant system, cooling, lighting, protection system, CNC system, electrical system.

2. Rectangular guideways are adopted on X, Y,Z,spindle speed range is 40~6000 rpm,rapid speed is 15/15/12 m/min. Timing and fixed quantity lubricant system is equipped, which prolongs the working life of machine.

3. Totally enclosed protection device is adopted, which assures the safety of worker and lustration of environment.

Product advantage:

1. Spindle equipped with imported major unit assembly, stepless speed change, high rotating accuracy and good dynamic balance precision. And also mounted positioning ring restore unit and AC main motor to perform rigidity tapping in high speed.

2. Spindles with the float tool stroke force to pass on the spindle bearings, and effectively improve the life of the spindle.

3. Spindles with a big motor boasts high spindle speed, great power, suitable for high metal removal rate and efficient processing needs.

4. X,Y,Z three-axis all adopt NSK special screw bearings with high precision. Plus pre-tensioning technique, it guarantees high rigidity and precision of the feed shaft.

Specification Of Vertical machine center VMC850B

Standard Accessories:

Fanuc Controller system

8000Rpm spindle

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

RS232 Interface +working light

Tool and tool box

Optional accessories:

Siemens controller or other controller system

Spindle oil coolant

Heat exchanger

Umbrella type tool magazine

Arm type tool magazine

Screw type auto conveyor

Chain type tool magazine

4 Axis rotary table

Ring spray spindle
