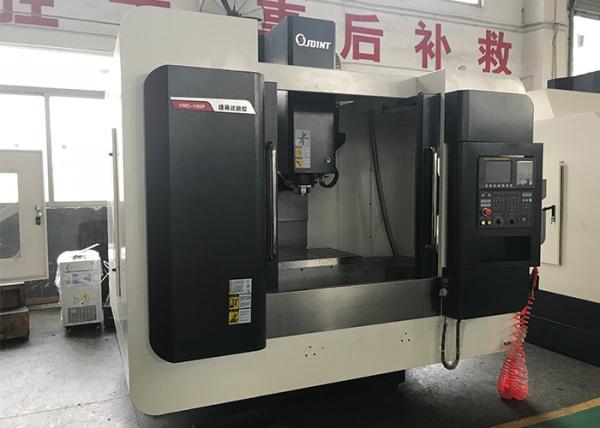

24too Arm Automatic Vertical CNC Machine , 140mm Spindle Large CNC Equipment
24too Arm Automatic Vertical CNC Machine , 140mm Spindle Large CNC Equipment
24too Arm Automatic Vertical CNC Machine , 140mm Spindle Large CNC Equipment
24too Arm Automatic Vertical CNC Machine , 140mm Spindle Large CNC Equipment
Specifications
Brand Name :
JOINT
Model Number :
V85P
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Name :
V85P CNC Machining Center
X axis travel :
800mm
Y axis Travel :
500mm
Z axis travel :
500mm
T slot :
5-18-100
Rivet type :
BT40 45°
Spindle diameter :
140mm
Motor :
Fanuc β motor
Description

BT40 45° 140mm Spindle Vertical Machining Center Fanuc β Motor 0i-MF System​

Machine description

1. V85P is configured with FANUC Oi-MF(5) controller system, Fanuc β servo motor, spindle oil coolant, heat exchanger, 24 tools ATC.

2. Fast rapid feed for x/y/z axis 36m/min, high efficiency for processing parts.

3. Optimized machine structure making its better performance in rigigity, suitable for making moulds.

4. It is widely applied in 3C products, automatic production line parts, electronics, machinery, car, plane, aerospace, shipbuilding and national defense etc.

Machine precision

Test item Test result
X/Y/Z axis reverse gap 0.002/0.002/0.001
Positioning accuracy 0.006/0.007/0.006
Repeated positioning accuracy 0.006/0.005/0.005
Squareness 0.008
Roundness 0.005

Specification Of Vertical machine center V85P

Model V85P
Table size 1000*550mm
X axis Travel 800mm
Y aixs Travel 500mm
Z axis Travel 500mm
Distance between spindle and table 160-660mm
Distance between spindle and column 524mm
Spindle rotation speed 10000 /Direct connection 12000/15000rpm
Spindle motor 7.5kw
Work table T slot 5-18*100
X/Y/Z axis ball screw size 3616
ATC type 24too arm type
Time of changing tool 2.5m/min
Rapid feed 48*48*48m/min
X/Y/Z axis motor 12/12/20NM
Max cutting feed 10m/min
Min set moving unit 0.001mm
Dimension 2650*2900*2850mm
Net weight 5000kgs
Max load of table 600kgs

Standard Accessories

Fanuc Controller system

10000/12000/15000Rpm spindle

24tools arm type tool magazine

Spindle oil cooler

Heat exchanger

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

RS232 Interface +working light

Tool and tool box
