Specifications
Brand Name :
JOINT
Model Number :
V85
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Name :
Vertical CNC Machine V85
Table :
900*450mm
X axis travel :
800*500*500mm
Distance between spindle and table :
170-670mm
Spindle taper :
BT40-140
T-Slot :
3-18-130
3 Axis guide way :
35(ball screw)
Ball screw size :
3616
Description

3616 Ball Screw V85 Vertical CNC Machine V85 800mm X axis Travel BT40 Spindle

Product features:

1. V85 is specially designed for parts processing with 48m/min rapid feed, 15m/min cutting feed.

2. V85 adopts large span structure, which is able to bear high ineritia gravity and improves dynamic responsiveness of the whole machine.

3. V85 is equipped with BT40-140 direct connection high speed short nose spindle, which increases efficiency and reduces abrasion of tools.

4. V85 tool magazine is BT40 24 tools arm type tool magazine, which adopts mechanic seal design and software warning to ensure reliable processing.

Product advantage:

1. The machine body structure

The whole cast iron adopts box type and overall type structure, which improves the stability of the machine center.

2. The spindle

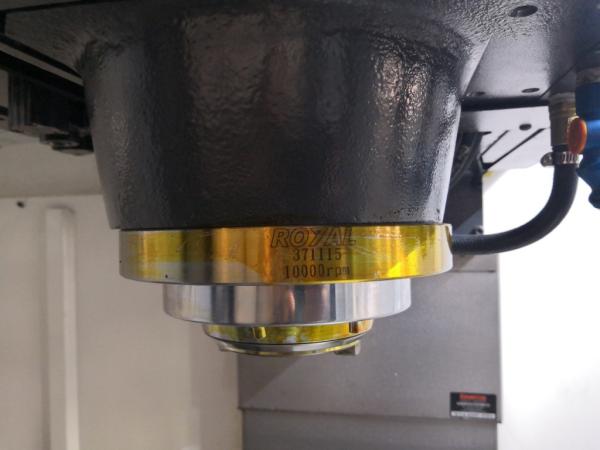

Taiwan famous brand spindle with imported oil coolant to cool the spindle, increase the bearing’s service life, lower the influence of spindle thermal deformation on processing.


3. The transmission parts

Ball screw gone through pre-stretching process to improves the rigidity of the transmission parts and eliminates the elongation of the ball screw caused by thermal stress effect, improves the stability of machine’s precision.

Specification Of Vertical machine center V85

Model Unit V85
Travel X axis mm 800
Y axis mm 500
Z axis mm 500
Distance between spindle and table mm 170-670
Working table Table size mm 900*450
Max. Load of table Kg 500
T slot Pcs－mm-mm 3-18-130
Positioning accuracy X/Y/Z axis mm 0.006/0.006/0.006
Repeated positioning accuracy X/Y/Z axis mm 0.005/0.005/0.005
Spindle Spindle rotation speed Rpm 10000
Spindle taper BT40
Diameter mm Φ140
Rivet model BT40 45°
Rapid feed X/Y/Z axis m/min 48/48/48
Cutting feed X/Y/Z axis m/min 15
Tool magazine Arm type Size Tools 24
Tool changing time (T-T) sec 2.5s
Max. diameter/ /length/weight of tool mm 80/250/8
Max tool diameter (no tool adjacent) mm 150
Total capacity of electric KVA 15
Weight of machine

Kg

 3800
Dimension mm 2350*2100*2650

Standard Accessories

Fanuc Controller system

10000Rpm spindle

24tools arm type tool magazine

Spindle oil cooler

Heat exchanger

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

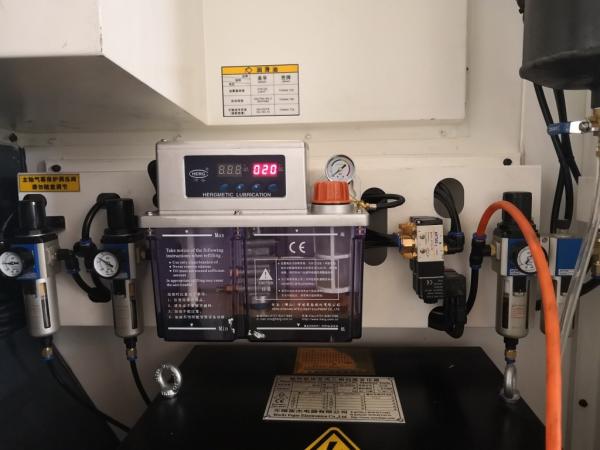

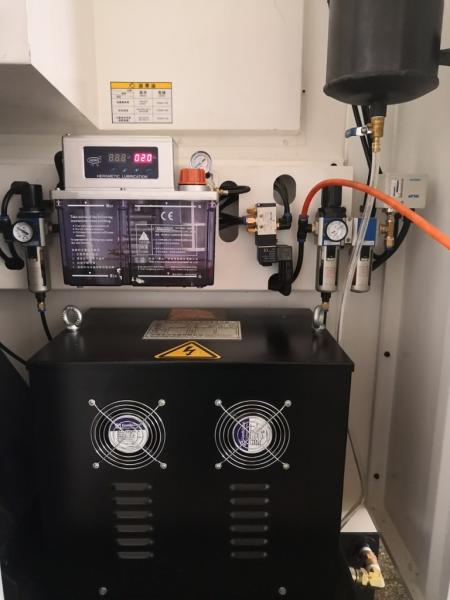

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

RS232 Interface +working light

Tool and tool box
