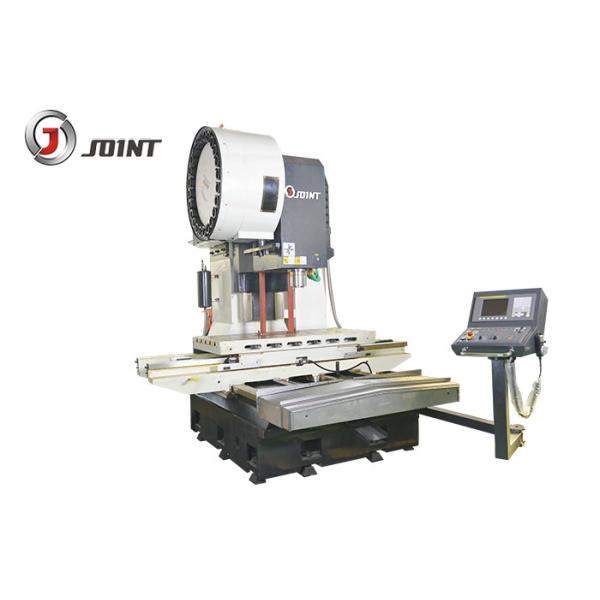

BT50 15KW Vertical CNC Machine Max Load 1500kg Big Travel VMC1580L

Product features:

1. The guide rail of X, Z, Y axis are use HIWIN/PMI's heavy load linear ball guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on.

2. The spindle unit of the machine tool is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial, and the maximum speed of up to 8000rpm.

3. Guide rail and ball screw of X, Y, Z direction are all use protection device to ensure that the screw and the guide is clean and the accuracy and life of machine tool's transmission and movement.

4. The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.

5. The machine matched with 12 hats (standard) or 16 disc knife library (optional) supplied by Taiwan professional manufacturers.

6.The principle of human body engineering is used in machine tool operation system . The operating box is independent. It can be self-rotation and easy to operate.

Product application:

1. The VMC is suitable for the mechanical processing and mold making.

2. It can adapt to the processing requirement from rough machining to finish machining.

3. It can also finish many working procedures like milling,drilling,tapping,boring.etc.

Specification Of Vertical machine center VMC1580L

Standard Accessories:

Fanuc/Mitsubishi Controller system

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

Working light

Tool and tool box

Optional accessories:

Siemens controller or other controller system

Spindle oil coolant

Umbrella type tool magazine

Arm type tool magazine

Screw type auto conveyor

Chain type tool magazine

4 Axis rotary table

Ring spray spindle
