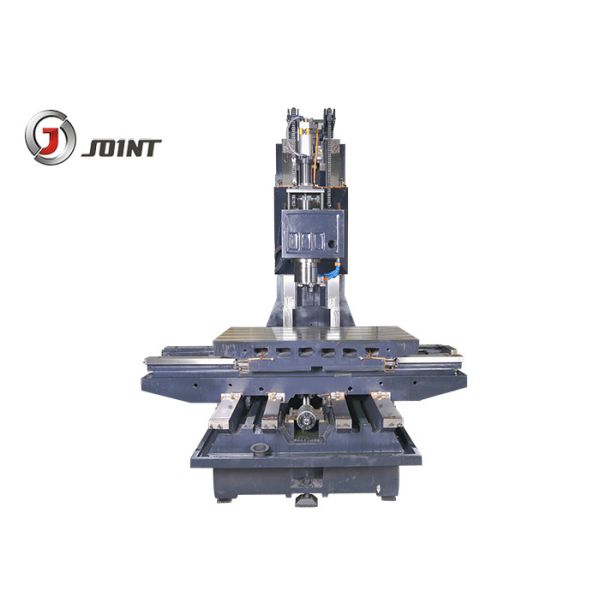

High Speed Vertical Machining Center VMC H86 2.5s Tool Change Time 24 Tool ATC

Quick detail:

1. Two configurations of machine are available. One is that linear ways are applied in all three axes of X, Y and Z; the other is that linear ways are applied in X-axis and Y-axis, and rectangular hardened sliding ways in Z-axis.

2. The machine has high rigidity, high accuracy, high speed, high efficiency, high reliability, large torque and wide machining range.

3. The machine is either suitable for multi-product small/medium patchproduction or mass production when fitted to a production line.

4. Use of the said machines can save technical equipment, shorten production preparation time, ensure product quality and improve productivity.

Product application:

1. This series machines are designed for milling, drilling, reaming, boring, tapping, and counter boring/sinking

2. Application in valve type workpieces, cams, moulds/dies, chuck type workpieces, and case typeworkpieces used in automobile industry, motor cycle industry, machinery manufacturing,sewing machine industry, motor industry, and instrument industry, especially those in complex

3. Shapes like 2-dimension or 3-dimension concave/convex moulds and cavities.

Specification Of Vertical machine center H86

Standard Accessories:

Fanuc/Mitsubishi Controller system

10000rpm direct drive spindle, 24 tools arm type tool magazine, heat exchanger, spindle oil coolant

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

Working light

Tool and tool box

Optional accessories:

Siemens controller or other controller system

Screw type auto conveyor

Chain type tool magazine

4 Axis rotary table

Ring spray spindle
