Automatic Vertical CNC Machine , 24 Tools Arm Type CNC VMC Milling Machine
Automatic Vertical CNC Machine , 24 Tools Arm Type CNC VMC Milling Machine
Specifications
Brand Name :
JOINT
Model Number :
H86
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Name :
High speed cnc machine center
Spindle :
BT40 45°
ATC type :
Arm type tool magazine with 24 tools
Dimension :
2300*3145*2800mm
Max load :
500kg
Spindle motor :
7.5kw
Spindle rotation speed :
10000/12000/15000rpm
Distance between spindle and table :
120-720mm
Description

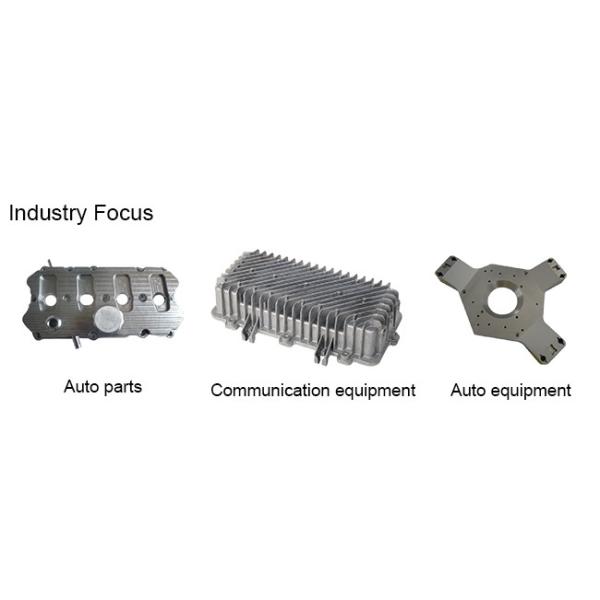

High Speed Vertical CNC Machine Center 24 tools Arm type tool magazine

Quick detail:

1. Wider machine body and column base design, strengthened cross casting to ensure high rigidity and fast dynamic responsiveness of the machine, and also greatly increase machine's accuracy during processing.


2. Tool magazine installed vertically to keep the balance of the machine's structure, which also help to increase the dynamic accuracy.


3. Adopt unique spindle case design, very suited for high speed cutting, H86 can increased more than 30% processing efficiency than normal machine center in market.

4. H86 is 3 axis linear guideway, 10000rpm direct drive BT40 spindle, Fanuc Oi-MF Controller system

5. Standard configuration includes Arm type tool magazine with 24 tools, spindle oil coolant, heat exchanger.

Company advantage:

1. Joint has been Machine manufacturer since 1995 with rich export experience since 2002.

2. National high-tech enterprise, Joint is ShenZhen famous brand


3. Joint machine meets with CE ISO9001 standard

4. More than 50 patents on invention, utility model patent and software copyright

Specification Of Vertical machine center H86

Model Unit H86
Travel X axis mm 800
Y axis mm 600
Z axis mm 600
Distance between spindle and table mm 120-720
Working table Table size mm 900*480
Max. Load of table Kg 500
T slot Pcs－mm-mm 4-18-100
Positioning accuracy X/Y/Z axis mm 0.006/0.006/0.006
Repeated positioning accuracy X/Y/Z axis mm 0.005/0.005/0.005
Spindle Spindle rotation speed Rpm 8000
Spindle taper BT40
Diameter mm Φ150
Rivet model BT40 45°
Rapid feed X/Y/Z axis m/min 48/48/48
Cutting feed X/Y/Z axis m/min 12
Tool magazine Arm type Size Tools 24
Tool changing time (T-T) sec 2.5s
Max. diameter/ /length/weight of tool mm 80/200/8
Max tool diameter (no tool adjacent) mm 150
Total capacity of electric KVA 15
Weight of machine

Kg

 5500
Dimension mm 2300*3145*2800

Standard Accessories:

Fanuc/Mitsubishi Controller system

10000rpm direct drive spindle, 24 tools arm type tool magazine, heat exchanger, spindle oil coolant

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

Working light

Tool and tool box

Optional accessories:

Siemens controller or other controller system

Screw type auto conveyor

Chain type tool magazine

4 Axis rotary table

Ring spray spindle
