Horizontal CNC Deep Hole Drilling Machine CNC Gun Drilling Machine DH-1600 TL-1600

Intergrated base structure, good stability, simple operation, reasonable layout, mold and covenient aeesmbly and disassembly, wide application.
Suitable for most mold processing.

Driling is the most basic process in machining operation, is also the process with the most wide range in application field, however,so far there has been no such an ideal equipment to change the situation that this traditional manual processing is time-consuming and energ)y-consuming.Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll .rocessing,. and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing lts emergence is the pride of mechanical manufacturing industry moreover it isthe second revolution in the field of mechanical processing!

The precision CNC deep hole driling machine produced by the company is suitable for various kinds of work pieces for deep hole processing:. die &. mould industry (water transport hole, center hole, hot runner, guideroller hole, etc.); auto industry (deep hole processing in cylinder head, crankshaft, hydraulic tubing,plunger bushing, etc.); oil pump &lubricating nipple industry (deep hole processing in oil-injection gas, nozzle valve, plunger bushing, and other spare parts) ; textile machinery industry(mesopore processing of various spindles); medical equipment industry (axial processing i titanium ally , stainless steel, etc.; mine &oil machinery (deep hole processing on piston rod, cylinder wall ; deep hole processing of rotor,central spindle, valve spindle, unit outer cylinder,condenser tube plate in the industry of electrical power, steam turbine.


Standard-Configurantion Accessories
1. High pressure oil cylinder
2. Taiwan control system
3. lmport servo system
4. Magnetic chip removal machine
5. Precision castings
6. Taiwan spindle
7. Taiwan roller linear rail with precision
8. Taiwan screw ground with precision



Optional Accessories

1. Depth drill tools with specific application for grinder
2. Cutting oil separator
3. Special cutting oil
4. lmport drill gun
5. Precision guide sleeve
6. Precision rubber jacket

Processing Principle Diagram



Product main technical specifications:

Detailed Photos

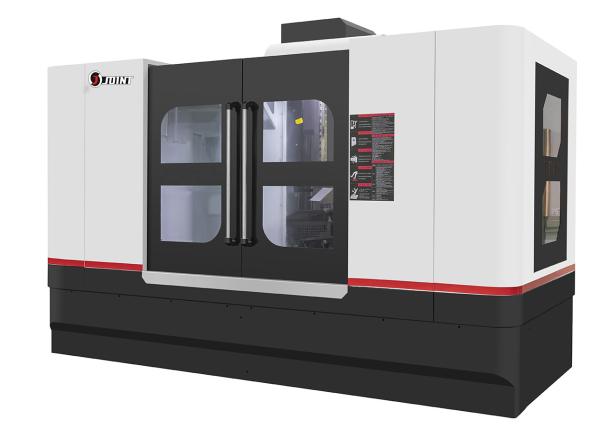

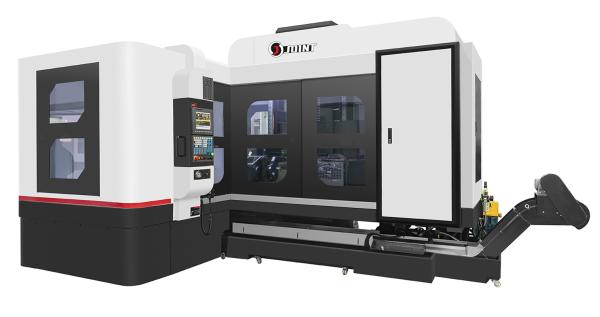

Machine Picture

Application Industry:

Package:

1. Our wooden pallet (wooden case) would fumigate and can get fumigation certificate.

2. Our package will be very careful for the parts, accessories for the machine.

Every part, accessory that need to be removed from machine, we will use pearl cotton and transparent film to pack them.

And make a note of them.
