BT40 Spindle 15000RPM 7.5w CNC Milling Vertical Machine 3 Axis Roller
BT40 Spindle 15000RPM 7.5w CNC Milling Vertical Machine 3 Axis Roller
Specifications
Brand Name :
JOINT
Model Number :
V855
Certification :
CE /ISO9001/SGS
Place of Origin :
China
MOQ :
1set
Price :
Usd29000.00-Usd60000.00/set
Payment Terms :
D/A, D/P, T/T, L/C
Supply Ability :
200 set per month
Delivery Time :
30 works day
Packaging Details :
1*40HQ Container
Type :
CNC
Power(w) :
7.5
Condition :
New
Weight :
5300
Voltage :
220V/380V/415V/Other
After-sales service provided :
Optional
Dimension(l*w*h) :
2550*2850*2800
Machine type :
Vertical
Spindle taper :
BT40
Spindle speed :
10000/12000/15000RPM
Color :
Black or White /Other
Control system :
Fanuc /Mitsubishi
Table size :
550*1000mm
Product name :
Vertical Machine Center
Worktable size :
800*550*550mm
Application :
Metal Machining ,Parts Machining ,
Guideway type :
Roller type linear way
Description

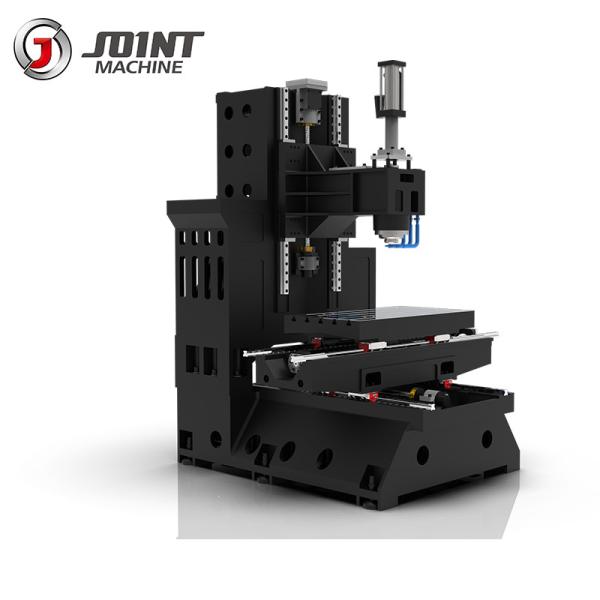

3 axis Roller linear way CNC Milling Vertical Machine Center V855

Feature :

1, 3 axis adpot roller type linear guide way , rapid feed:48m/min

2, The unique large-span structure of the base and column can withstand the inertia caused by high G with high overall dynamic response

3, With direct connection short nose high speed spindle

4, Optional :12000rpm/15000rpm direct connection spindle , Coolant through spindle ,ring spray spindle .

Specification of CNC Vertical milling machine

Model Unit V855
Travel X axis mm 800
Y axis mm 550
Z axis mm 550
Distance between spindle and table mm 140-690
Working table Table size mm 550*1000
Max. Load of table Kg 500
T slot Pcs－mm-mm 5-18-100
Positioning accuracy X/Y/Z axis mm 0.006/0.006/0.006
Repeated positioning accuracy X/Y/Z axis mm 0.007/0.007/0.007
Spindle Spindle rotation speed Rpm 10000
Spindle taper BT40
Diameter mm Φ150
Rivet model BT40 45°
Rapid feed X/Y/Z axis m/min 48/48/48
Cutting feed X/Y/Z axis m/min 15
Tool magazine Arm type Size Tools 24
Tool changing time (T-T) sec 3.5s
Max. diameter/ /length/weight of tool mm 80/200/8
Max tool diameter (no tool adjacent) mm 150
Total capacity of electric KVA 15
Weight of machine

Kg

 5300
Dimension mm

2550*2850*2800

Machine Picture

BT40 Spindle 15000RPM 7.5w CNC Milling Vertical Machine 3 Axis Roller

Standard Accessories:

Fanuc / Mitsubishi Controller system

10000Rpm spindle

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

RS232 Interface +working light

Tool and tool box

Optional accessories:

Siemens controller or other controller system

Spindle oil coolant

Heat exchanger

Umbrella type tool magazine

Arm type tool magazine

Screw type auto conveyor

Chain type tool magazine

4 Axis 5 axis rotary table

Ring spray spindle

CTS (Coolant through Spindle )

12000Rpm/15000rpm/24000rpm

Oil skimmer

Machine Detail

Fanuc Controller

BT40 Spindle 15000RPM 7.5w CNC Milling Vertical Machine 3 Axis Roller

Taiwan Spindle and ATC

BT40 Spindle 15000RPM 7.5w CNC Milling Vertical Machine 3 Axis Roller

Application

BT40 Spindle 15000RPM 7.5w CNC Milling Vertical Machine 3 Axis Roller

Why Choose Joint Machine ?

1.26year professsional cnc machinery manufacturer In China

2. National High -tech Enterprise

3.Shenzhen famous brand "JOINT"

4. Member of China Quality Association

5.Vice -Chairmen of shenzhen Machinery Association

6.Awarded China Metal Cutting Industry Top 50 for Five years in manufacturing industry

BT40 Spindle 15000RPM 7.5w CNC Milling Vertical Machine 3 Axis Roller
