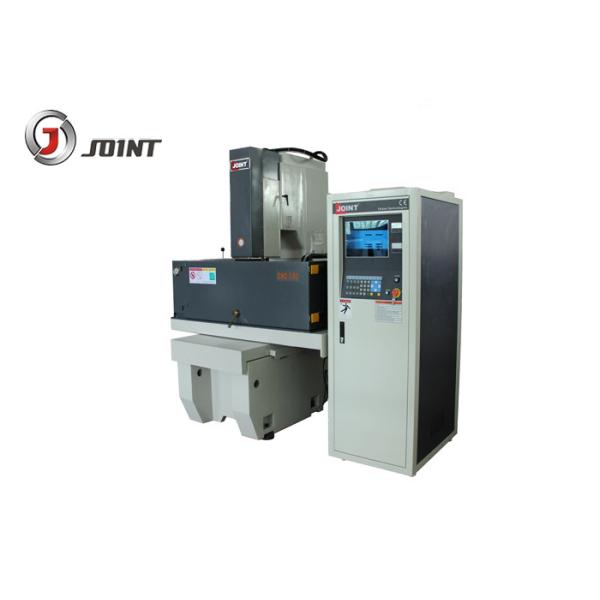

400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size
400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size
400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size
400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size
Specifications
Brand Name :
JOINT
Model Number :
CNC-40G
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Model :
CNC-40G
Table size :
700*400mm
size of oil container :
1130*710*450mm
X/Y/Z axis travel :
400*300*300mm
Max.load of electrode head :
620kg
Max.load of table :
1000kg
Net weight :
2000kg
Dimension :
2050*2530*2400mm
Description

400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table SizeEfficiency mirror electric discharge machine CNC-40G for mould processing

400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size

1. Stable for ultra high precidion molds and parts processing.

2. U-class high quality ultra-fine surface procssing, low loss, high finish.

3. Used for processing complex curved parts, precision connectors, precision processing of pricision parts,

solving complex processing problems.

4. Achieve large- area and high-gloss uniform processing, small- area PIKA surafce processing.

5. Famous Taiwan brand controller, reliable and accuracy.

6. Wider range of application:drilling, boring, medium-load milling, scribing,scaling and measuring all are ok.

7. Various sizes of table:three standard sizes and much more amounts of size just as your requirement.

400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size


Engine specification:

Model CNC40G
Size of oil container

1130*710*450mm
Table size 700*400mm
X axis travel 400mm
Y axis travel 300MM
Z axis travel 300mm
Max distance from the electrode head to table 620mm
Max load of electrode head 120kg
Max load of table 1000kg
Dimension

2050*2530*2400mm
Net weight 2000klg
Filter container cube 400L
Filter container net weight 150kg


Electric cabinet specification:

Item CNC MACHINE Item CNC MACHINE
CNC pulse power supply unit A1-40 Input method Touch screen, USD
Max.current for processing 40A Display method 15'’LCD screen (TFT-LCD)
Total input current 9KVA Hand control box Standard point motion (multi-level switching) assist
Input power AC380V Position command method Absolute and value added
Optimum surface roughness Ra0.2 Input range +9999.999-9999.999mm
Minimum electrode loss 0.10% EDM condition registration function 1000 Pcs condition (C000-C999)
Max. productivity 500mm³/min Offset function 1000 Pcs condition (H000-H999)
Standard process 0-999groups Program sequence number subroutine nesting level Specified setting N000000000 to N999999999
50
Interpolation method Copper/steel, micro copper/steel, graphite/steel, copper tungsten/steel, fine copper tungsten/steel,
Steel/steel, copper tungsten/hard alloy, copper/aluminum, graphite/titanium		 Number of coordinates 60
Input rated power Straight line, arc, spiral Drive method AC servo
Each axis compensation Step error compensation and gap compensation for each axis Weight 800KG
Maximum number of control axes Demension 1590*520*1899mm
Each axis resolution 0.4μm
Minimum drive unit 1μm

400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size


1. Fire extinguisher


2. Electric cabinet


3. Tool and tool box


4. 150*350mm magnet chuck

400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size

400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size400L Filter AC380V CNC450 CNC EDM Machine 700*400mm Table Size
