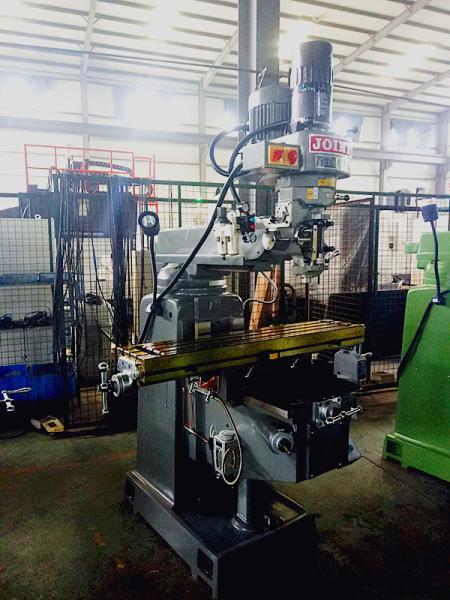

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM
R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM
R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM
R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM
Specifications
Brand Name :
JOINT
Model Number :
4PM
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Dimension :
1500*1700*2200mm
Milling head :
Taiwan original milling head
Spindle Taper :
R8(NT30)
Rated power :
3HP
Name :
Milling and boring machine
Table size :
1270*254*90mm
X/Y/Z axis travel :
900/370/360mm
Net weight :
1400kg
Description

High precision componet milling and boring machine 4PM

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

◆ Suitable for precision electronics, optical machinery and automation equipment, semiconductor precision components processing.

◆ Suitable for boring, milling, drilling and other high positioning size processing, boring accuracy is controllable in the range of 0.005-0.012mm.

◆ Taiwan high quality original milling head, NSK P4 precision grade spindle bearing, spindle

runout: 0.003mm.

◆ X, Y precision ball screw drive, precise positioning, feel smooth.

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

Model 4PM
Table size 1270*254*90mm
X axis travel 900mm
Y axis travel 370mm
Z axis travel 360mm
Travel of spindle quill 127mm
Diameter of quill 85.725mm
Max distance from the spindle nose to table 400mm
Spindle rotation speed

66-4540/(10Grades)/50HZ

80-5440/(10Grades)/60HZ
Spindle Taper R8(NT30)
Spindle Rated power 3HP
Tilt angle Forward and backward ±45°
Tilt angel left and right ±90°
Dimension 1500*1700*2200mm
Net weight 1400kgs

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

R8 3HP RAM Vertical Turret Milling Machine Metal Milling Boring Machine 4PM

Q1. Can you provide customized machine or SPM (Special purpose machine)?

A. Yes, we provide smart solutions for our customer, in order to increase efficiency.

Q2. Can you provide training for operation CNC machines?

A. Yes, free training in our factory is available.

Q3. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 12 months,

starting on the machine’s bill of lading date. Extended warranty is available at the time of

purchase. Please contact your Joint sales representative for details.
