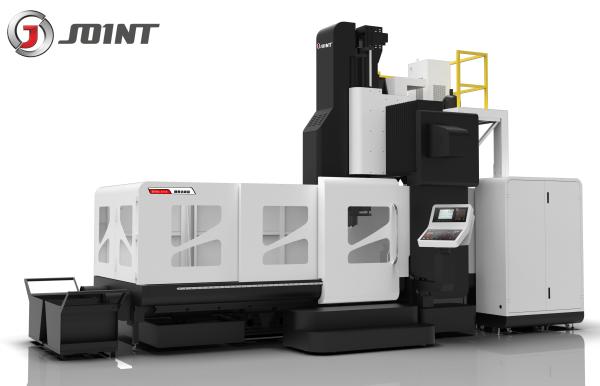

Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper
Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper
Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper
Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper
Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper
Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper
Specifications
Brand Name :
JOINT
Model Number :
BTMC-1016
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Name :
Gantry type double column machine center
Model name :
BTMC-1016
Table :
900*1800mm
X/Y/Z axis Travel :
1600/1100/800mm
Width of gantry :
1100mm
Spindle taper :
BT50
Rotation speed :
8000rpm
Spindle motor :
15kw
Description

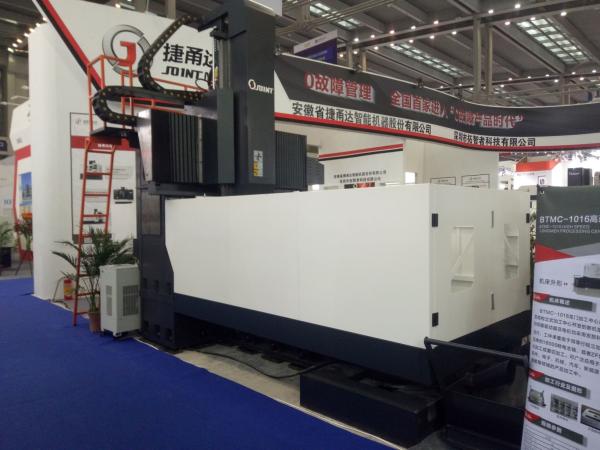

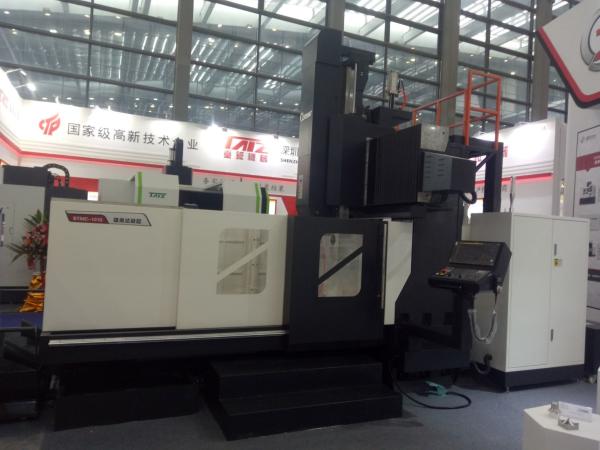

Gantry double column CNC milling center BTMC-1016

Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper

1. Extremely rigid and stable structure, the oversized column combined with box type beam construction

features additional machine rigidity.

2. The slant beam construction with increased slide way surfaces efficiently upgrades force distribution area

this results in greater stability.

3. The spindle head is located at the center of beam, providing high movement accuracy, superior heavy

cutting capability and outstanding rigidity. The position is specially designed with symmetrical to center.

4. Equipped with spindle motor ball screw and double counter-balance cylinders are all properly located at

the best positions to avoid unequal torque, while assuring the best structural accuracy.

5. The double counter – balancing cylinders on Z-axis are suspension supported, close to the movement

gravity center, symmetrical to the spindle drive ball screw and the center of spindle motor. Optional

position design not only fully eliminates the possibility of unequal torque, but also provides high feeding

accuracy and machining accuracy.

6. Roller linear ways on X/Y-axis combined with box ways on Z axis.

Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper

Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper

Model BTMC-1016
Table size 900*1800mm
X/Y/Z travel 1600*1100*800mm
Distance between tool head and table 140-940mm
Work table Y slot (NO.-size*pitch) 7-22*125mm
Width of gantry 1100mm
Spindle rotation speed 8000 rpm/min (optional 10000/12000/15000rpm/min)
Spindle Taper BT50(φ155/190mm)
Spindle Motor 15KW
X/Y/Z axis ball screw size 6310/2010/5010
X/Y axis guide way 45/45
X/Y/Z axis Rapid feed 10/12/12 m/min
Positioning accuracy 0.01mm
X/Y/Z axis Cutting feed 8 m/min
Dimension 6420*3100*3890mm
Net weight 13000kg
Max load of table 2000kg

Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper

1) Fanuc-OI MF(5) Control System with motor and drive 9) Automatic lubrication system
2) 8000RPM/15KW/BT50 Taiwan brand belt type spindle 10) Heat exchange
3) X/Y axis are roller linear way, Z axis is box way 11) Warning light
4) 900*1800mm worktable area 12) Tool and tool box
5) Screw type chip conveyor 13) Working light
6) Pneumatic system 14) RS232 Interface
7) Work piece coolant system 15) Operation manual
8) Spindle oil chiller

Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper

Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle TaperLarge Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle TaperLarge Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper

Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper

Precision machinery manufacturer since 1995.

Your reliant expert on moulding and machining equipemnt!

Large Casting CNC High Speed Milling Machine BTMC-1016 BT50 Spindle Taper
