Specifications
Brand Name :
JOINT
Model Number :
BTMC-2204
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Name :
Gantry type double column machine center
Model name :
BTMC-2204
Table :
4000*1800mm
X/Y/Z axis Travel :
4000/2200/1000mm
Width of gantry :
2200mm
Spindle taper :
BT50
Rotation speed :
6000rpm
Spindle motor :
22kw
Description

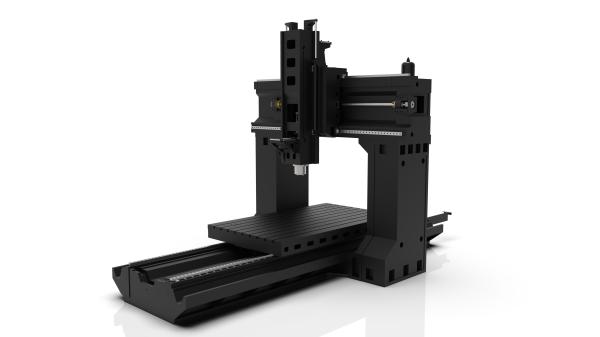

Gantry double column CNC milling center BTMC-2204

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

This gantry machining center is mainly composed of the parts of the spindle screw

lubrication system, the cooling system, the numerical control operation panel and

the electronic control system . It is mainly used in heavy industries, such as aircraft,

automobiles, ships and other heavy industries. It mainly processes large and complex

workpieces, such as aircraft beams, frames and some parts of large machinery. In a

word, longmen processing center is a large machine tool designed for processing

large complex parts, suitable for various industries, especially large parts industry.

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

1. Guide way:

XY axis adopts high precision, high speed, high load bearing roller linear slide track and ball

screw to ensure dynamic accuracy and durable service life. Z-axis is designed with hardened

sliding track.

2. Spindle:

Box spindle head structure, internal reinforcement, using Japan's NSK P4 class ultra-precision

bevel ball bearing and large span support design.o that the spindle can withstand strong radial

and axial thrust, eliminate vibration under heavy cutting load.

3.Transmission parts:

Imported precision bearing and Taiwan precision ball screw. The installation of the ball screw

adopts the pre-drawing technology, which can not only improve the rigidity of the transmission

parts, but also eliminate the elongation of the ball screw caused by thermal stress effect during

the temperature rise of the ball screw in operation.

4.Tool magazine:

Taiwan DETA disc type automatic tool changer.


Mechanical arm tool change, point-to-point tool change only 1.9 seconds

5.Machine body:

The machine body adopts alloy cast iron with secondary tempering to ensure the stability and

reliability of the body and effectively prevent the deformation of the body.

6. Spindle chiller:

Imported spindle oil cooler, improves the service life of the bearing, and reduces the impact

of the spindle's thermal deformation on the machining accuracy.

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Model BTMC-2204
Table size 4000*1800mm
X/Y/Z travel 4000*2200*1000mm
Distance between tool head and table 250-1250mm
Work table Y slot (NO.-size*pitch) 9-22*180mm
Width of gantry 2200mm
Spindle rotation speed 6000 rpm/min
Spindle Taper BT50
Spindle Motor 22KW
X/Y/Z axis ball screw size 8016/6130/5010
X/Y axis guide way 55/55
X/Y/Z axis Rapid feed 8/10/12 m/min
Positioning accuracy 0.01mm
X/Y/Z axis Cutting feed 8 m/min
Dimension 10600*4300*5100mm
Net weight 39000kg
Max load of table 10000kg

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

1) Fanuc-OI MF(5) Control System with motor and drive 9) Automatic lubrication system
2) 8000RPM/15KW/BT50 Taiwan brand belt type spindle 10) Heat exchange
3) X/Y axis are roller linear way, Z axis is box way 11) Warning light
4) 4000*1800mm worktable area 12) Tool and tool box
5) Screw type chip conveyor 13) Working light
6) Pneumatic system 14) RS232 Interface
7) Work piece coolant system 15) Operation manual
8) Spindle oil chiller

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long LifetimeLarge Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long LifetimeLarge Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Precision machinery manufacturer since 1995.

Your reliant expert on moulding and machining equipemnt!

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Large Gantry Milling Machines BTMC-2204 0.01mm Positioning Accuracy Long Lifetime

Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may
contact us directly by Trade Manager or Telephone.

Q2. Can you provide customized machine or SPM (Special purpose machine)?

A. Yes, we provide smart solutions for our customer, in order to increase efficiency.

Q3. Can you provide training for operation CNC machines?

A. Yes, free training in our factory is available.

Q4. How about your price?

A. Send me details about what you need, you will get the best price in China. The price is

competitive over the world.

Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 12 months,

starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details.
