Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series
Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series
Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series
Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series
Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series
Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series
Specifications
Brand Name :
JOINT
Model Number :
VMC-1270L3
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
X axis travel :
1200mm
Y axis travel :
700mm
Z axis travel :
650mm
X/Y/Z axis rapid feed :
20/20/15 m/min
Cutting feed :
10 m/min
Spindle speed :
8000rpm
Table size :
1360*700mm
Spindle taper :
BT50
Description

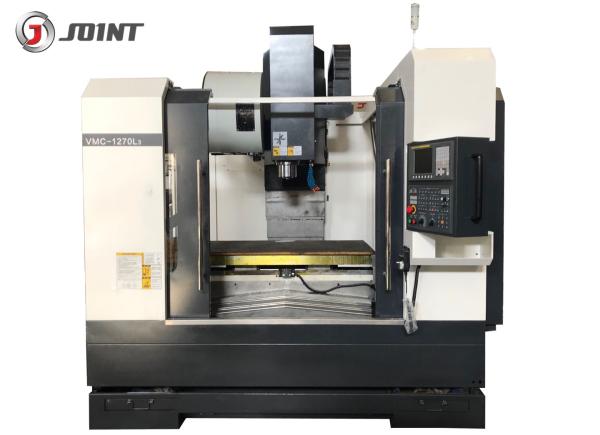

Three axis ball linear way CNC Machine Center VMC1270L3

Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series

L3 series machine is designed based on fast and rigid processing, which provides guarantee

for mass production of parts, processing accuracy and maximum processing efficiency ,

Modular combination of high efficient chip removal, rapid feed and high speed spindle

functions to meet different customers’ personalized Choice. The key parts of machine adopt

imported world’s top brands high quality parts.

Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series

Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series

1. L3 series VMC Z axis linear way, effectively improve processing efficiency

2. VMC-1270L3 increase Z axis travel to 700mm and are able to install 4 axis rotary table for

complex parts processing.

3. VMC127L3 (BT40 Spindle ). Suitable for large size parts processing, with optional spindle

rotation speed (10000/12000rpm)

Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series

Model Unit VMC1270L3
Travel X axis mm 1200
Y axis mm 700
Z axis mm 650
Distance between spindle and table mm 155-860
Working table Table size mm 1360*700
Max. Load of table Kg 1000
T slot Pcs－mm-mm 5-18-122
Positioning accuracy X/Y/Z axis mm 0.008/0.008/0.008
Repeated positioning accuracy X/Y/Z axis mm 0.006/0.006/0.006
Spindle Spindle rotation speed Rpm 8000
Spindle taper BT40
Diameter mm Φ150
Rapid feed X/Y/Z axis m/min 20/20/15
Cutting feed X/Y/Z axis m/min 10
Tool magazine Umbrella type Size Tools 20
Too changing time (T-T) Sec 8s
Max.tool weight Kg 15

Max tool diameter

(no tool adjacent)

 mm 150/180
Arm type Size Tools 24
Tool changing time (T-T) sec 4.5s
Max. diameter/ /length/weight of tool mm 110/200

Max. tool weight

 Kg 15
Total capacity of electric KVA 25
Weight of machine

Kg

 9000
Dimension mm 3560*3300*3250

Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series

1. Fanuc MF(5) Controller system 2. 8000Rpm spindle

3. Full enclosed cover 4.Spindle encoder position system

5. Three axis inner encoder feedback system 6. Auto lubrication system

7. Pneumatic system 8. RS 232 Interface

9. Operation unit 10. Working light

11. Tool and tool box
Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series

1. M80A Mitsubishi controller system 2. Spindle oil coolant

3. Heat exchanger 4. Umbrella type tool magazine

5. Arm type tool magazine 6. Screw type auto conveyor

7. Chain type tool magazine 8. 4 Axis rotary table

9. Ring spray spindle

Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series

Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series

Big Size VMC 3 Axis Cnc Vertical Machining Center BT40 CNC Milling L3 Series
