Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant
Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant
Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant
Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant
Specifications
Brand Name :
JOINT
Model Number :
VMC-850C
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Model :
VMC-850C
Travel :
800*500*700mm
Distance between spindle and table :
110-810mm
Rapid rate :
15/15/12 m/min
Distance between spindle and column :
575mm
Cutting feedrate :
8 m/min
Positioning accuracy :
0.008
Spindle taper :
BT40
Description

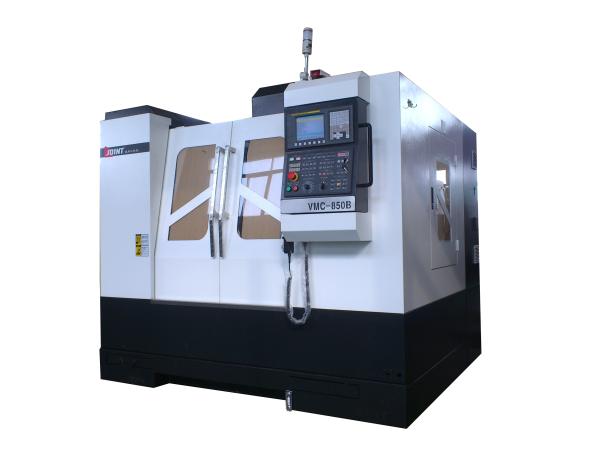

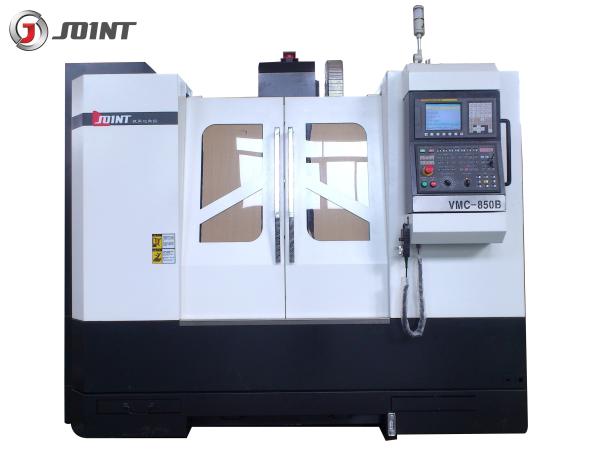

Heavy Duty Metal Mold CNC Machine Center VMC-850C

Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant

Mould processing special processing center series product has high rigidity, high precision,

high reliability, large torque characteristics. Suitable for automobiles, motorcycles, aerospace,

mechanical, electrical, instrumentation and other industries of valve, CAM, complex shape of

the surface of the model and the complex cavity and parts, such as processing and metal

mold, plastic mold processing.

Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant

◆ X/Y/Z axis slide way are quenched, Y axis have two pcs slide way and 4 pcs slide way

design according different model rigidity requirement

◆ High rigidity structure, ensure machine strong cutting requirement.

◆ Couple, bearing, spindle, ball screw, ATC, unclamping cylinder and other key parts are all

imported for Germany, Japan and Taiwan Top brands to ensure high quality and high

precision.

◆ Modular configurations, customers can meet the personalized choice of different processing

needs: coolant through spindle, 10000~15000 RPM /min direct spindle.

◆ This machine center focuses on mould processing, suitable for mechanic parts processing.

◆ In this series above model 1270, adapt temperature rise control technique (our patent) to

ensure the stability and accuracy for long-hour processing

Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant

Model Unit VMC-850C
Travel X axis mm 800
Y axis mm 500
Z axis mm 700
Distance between spindle and table mm 110-810
Working table Table size mm 900*480
Max. Load of table Kg 575
T slot Pcs－mm-mm 5-18-100
Positioning accuracy X/Y/Z axis mm 0.008/0.008/0.008
Repeated positioning accuracy X/Y/Z axis mm 0.006/0.006/0.006
Spindle Spindle rotation speed rpm 8000
Spindle taper BT40
Rivet model BT40 45°
Rapid feed X/Y/Z axis m/min 15/15/12
Cutting feed X/Y/Z axis m/min 8
Tool magazine Umbrella type Size Tools 20
Too changing time (T-T) Sec 6
Max. diameter/ length/weight of tool mm 100/200/8
Max tool diameter (no tool adjacent) mm 180
Arm type Size Tools 24
Tool changing time (T-T) sec 3.5s
Max. diameter/ /length/weight of tool mm 80/200/8
Max tool diameter (no tool adjacent) mm 150
Weight of machine

Kg

 6000
Dimension mm 2750*2450*2550

Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant

Fanuc MF(5) / Mitsubishi M80A/M80B

Controller system

 Pneumatic system
Full enclosed cover RS 232 Interface
Spindle encoder position system Operation unit
Three axis inner encoder feedback system Working light
Auto lubrication system Tool and tool box

Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant

Siemens controller or other controller system Screw type auto conveyor
Spindle oil coolant Chain type tool magazine
Umbrella type tool magazine 4 Axis rotary table
Arm type tool magazine Ring spray spindle

Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant

Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant

Heavy Duty VMC-850C CNC Metal Milling Machine 4 Axis 3 Axis VMC ISO9001 Compliant

Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you

may contact us directly by Trade Manager or Telephone.

Q2. Can you provide customized machine or SPM (Special purpose machine)?

A. Yes, we provide smart solutions for our customer, in order to increase efficiency.

Q3. Can you provide training for operation CNC machines?

A. Yes, free training in our factory is available.
