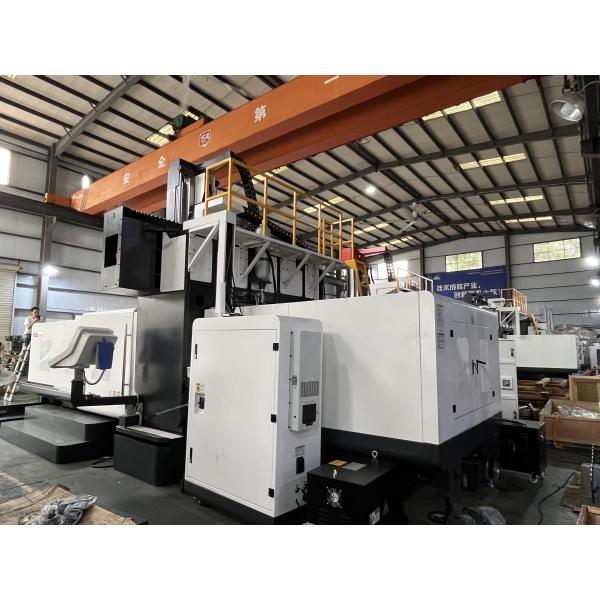

Three Axes CNC Machining Center 3000mm / 1800mm / 800mm 6000rpm Rotary Table
Three Axes CNC Machining Center 3000mm / 1800mm / 800mm 6000rpm Rotary Table
Specifications
Brand Name :
JOINT
Model Number :
BTMC-1830
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Working Table Size :
1620*3000mm
Rotation Speed :
6000rpm
X/Z axis travel :
3000/800mm
Spindle :
Short nose spindle
Spindle Taper :
Bt50
Spindle Type :
Belt Type
T slot :
9-22*180mm
Gantry Width :
1820mm
Description
Full-Equipped technological process ensure the accuracy and stability of the machine

1. Standard accessory: BT50 belt spindle achieve high rigid processing. It also can optional with BT40, 10000/12000/15000 RPM direct spindle, or HSKA63 8000/24000rpm motorized spindle, realize high specular processing requirements.
2. It can be optional with Coolant Through Spindle (CTS) to achieve deep hole processing requirements.
3. It can be optional with gear box or whole gear box, to meet strong cutting requirements.

Key Advantages:

1. High precision key parts: Adopt German/Taiwan famous brand Linear guide rail and ballscrew , Japan NSK/P4 grade precision bearing,ensure high accuracy of the machine.

2. Standard Accessories: Taiwan BT50 mechanical spindle, X, Y axis heavy load roller linear guide rail, Z axis box way ; suitable for large mold, large parts, mold frame rigid high-speed processing.

3. Beam, column and base are analyzed and designed for reinforcing bars, improve rigidit y and deformation resistance to suitable the requirements of high speed high specular machining.



Specification:

Model BTMC-1830
Table size mm 1620*3000
X axis travel mm 3000
Y axis travel mm 1800
Z axis travel mm 800
Gantry width mm 1820
Distance between spindle and table mm 280-1080
Spindle rotation speed rpm 6000
Spindle taper Short nose BT50 (Φ155)
Spindle motor kw 15
Work table T slot No.-Size*Pitch 9-22*180
X axis screw 8016
Y/Z axis screw 5512/5010
X/Y axis linear guide way 45 heavy load roller guide way
Z axis guide way m/min Box guide way,
X axis rapid feed m/min 10
Y axis rapid feed m/min 12
Z axis rapid feed m/min 10
Cutting feed m/mm 8
Positioning accuracy mm/m 0.01
Min. set moving unit mm 0.001
Dimension (L*W*H) mm 8700*4510*4500
Weight kg 21000
Max. load of table kg 6000

Standard accessories:
1. Mitsubishi/ Fanuc controller system
2. Fully enclosed cover
3. Pneumatic system
4. Anto lubrication system
5. Work piece coolant system
6. Spindle encoder position system
7. Three inner encoder feedback system
8. Hand wheel
9. RS232 Interface
10. Alarming light
11. Working light
12. Guide way cover
13. Technical documents
14. Operation manual
15. Screw type conveyor device
16. Spindle oil coolant
17. Heat exchange

Optional accessories:
1. Rotary table
2. Coolant through spindle (CTS)
3. Gear box
4. 24tools Arm type ATC




Overview:

Three Axes CNC Machining Center 3000mm / 1800mm / 800mm 6000rpm Rotary Table

Three Axes CNC Machining Center 3000mm / 1800mm / 800mm 6000rpm Rotary Table


Three Axes CNC Machining Center 3000mm / 1800mm / 800mm 6000rpm Rotary Table

Three Axes CNC Machining Center 3000mm / 1800mm / 800mm 6000rpm Rotary Table


Company qualifications and honors:

1. National High-tech Enterprose
2. Shenzhen famous brand "JOINT"
3. Member of China Quality Association
4. Member of China Machine Tools Association
5. Vice-chairmen of Shenzhen Machinery Association
6. CE certification on milling machine, grinidng machine and machine center.
7. More than 150 patents on invention, utility model patent and software copyright etc.
8. Guangdong famous trademark

Company Core strengths:

1. Standardize processes and operating mechanisms, high standards production and testing software and hardware - Ensure stable product supply and service support.
2. We insist in-depth research and technological precipitation for more than 20 years - Promote rapid innovation and progress in products and technology.
3. Comprehensive information management systems such as ERP and CRM - JOINT has formed a efficient operation and continuous improvement system.
4. Integrity, collaboration, innovation, and win-win spirit - we JOINT has established a strong and stable supply chain, and a large long-term win-win customer base.
