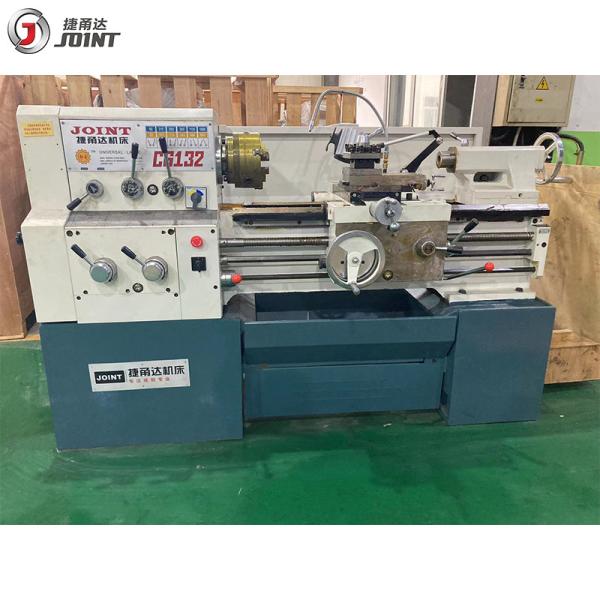

Conventional Turning Engine Metal Manual Lathe Machine 750mm / 1000mm Workpiece Length
Conventional Turning Engine Metal Manual Lathe Machine 750mm / 1000mm Workpiece Length
Conventional Turning Engine Metal Manual Lathe Machine 750mm / 1000mm Workpiece Length
Conventional Turning Engine Metal Manual Lathe Machine 750mm / 1000mm Workpiece Length
Conventional Turning Engine Metal Manual Lathe Machine 750mm / 1000mm Workpiece Length
Conventional Turning Engine Metal Manual Lathe Machine 750mm / 1000mm Workpiece Length
Specifications
Brand Name :
JOINT
Model Number :
C6132A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
USD6000-USD20000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100sets/Month
Delivery Time :
20-30 working days
Packaging Details :
wooden case package
Max Swing Diameter Over Bed :
350mm
Max Workpiece Length :
1750, 1000mm
Bed rail width :
290
Max turning diameter of work piece on tool holder :
190mm
Maximum longitudinal travel of tool rest :
630mm
Maximum transverse travel of tool rest :
220mm
Bar diameter :
45mm
Spindle center height :
175mm
Spindle head connection :
C6
Through hole diameter of spindle :
46mm
Description

Conventional Turning Engine Metal Lathe Machine C6132A 750/1000mm Workpiece Length



Features

1. The hardness of machine guide way is in above HRC52°, use high precision cnc guide way grinding machine machining, high durability for guide way, good precision for body machining.

2. Lathe head box, feed box, sliding box use cnc machine center machining, ensure machining precision of box.

3. Transmission gear usd cnc gear grinding machining, and noise test, low gear noise.


Specification

Model C6132A
C6232A
Max swing over bed mm 350
Max work piece length mm 750, 1000
Bed rail width mm 290
Max turning diameter of work piece on tool holder mm 190
Maximum longitudinal travel of tool rest mm 630, 880
Maximum transverse travel of tool rest mm 220
Bar diameter mm 45
Maximum turning diameter of workpiece in saddle groove mm 520
Valid length of gap mm 200
Spindle center height mm 175
Spindle head connection   C6
Through hole diameter of spindle mm 46
Taper of spindle inner hole   MT6
Spindle rotation speed r/min 25-1600
Taper of inner hole of top sleeve   MT4
Maximum movement in tip sleeve mm 130
Maximum lateral movement mm ±10
Thread Inch system   80-33/4N/1"
Metric system   0.45-20mm/r
Module   0.25-10mm
Diameter pitch   160-31/2DP
Motor specification   YD132M-8/4-B5 3-4.5KW
Belt specification   4-A-1900mm/4-A-2000mm
Dimension (L*W*H) 750mm mm 1950*900*1200
1000mm mm 2200*900*1200
Nei weight 750mm kg 1300
1000mm kg 1400
