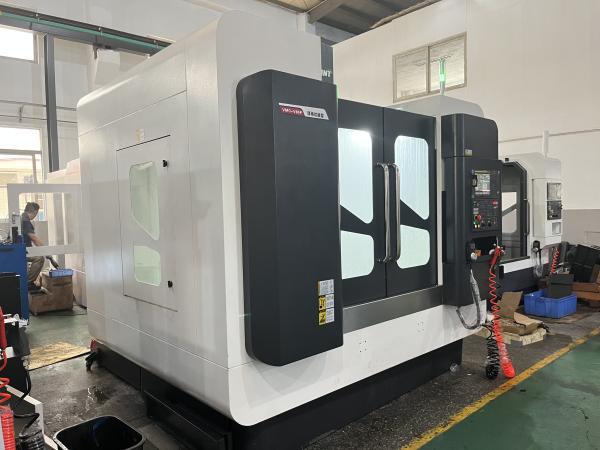

Introduction:

VMC-V85P is our BEST model, suitale for processing HIGH SPEED AND HIGH PRECISION mold and parts. Its optimized fuselage design is more advantageous in part processing effieience and mold curve processing accuracy and cleaness. It can widely used in 3C products, autoautomatic special aircraft parts, electronics, machinery, automotive, procesion medical and other fields of high-precision product processing

Product Characteristics:

1. Using finite element analysis software and vibration detection technology to test its fuselage constructure design repeatedly, demostrating that V85P with high stability deformation-proof characteristics, ensuring whole machine rigidity, and vibration-proff when processing high speed.

2. Ultra wide base, X axis is 0.39m wider than V85, which improves machine stability of degree and smoothness of movement.

3. Three axis adopts high loaded and high rigidity roller linear guide rail, X/Y/Z axis width is 45mm, optimizes cutting capacity of machine.

4. No hammer counterweight design, Z axis increase motor rate to improve responsiveness of Z axis.

5. Column large spam(260mm wider than V85), added right and left vertical direction on the platform design. Tool magazine is installed horizontally in left platform, avoding column deformaton caused by side installed tool magazine. Column adopts large span herringbone design and endolumen cross sinewy structure, for satisfying Z axis part high speed movement and spindle high speed rotation rigidity requirement, through which ensuring the overall deformation coefficient of the column and the vibration of the machine tool will be reduced to the minimum.

6. Spindle box reinforced design, reduce vibration when spindle is rotation in high speed, and improve machine cutting capacity.

7. V85P ball screw pitch is 10, smaller lot than others through decreasing ball screw gap to increase processing accuracy.

Products Fuselage:

Super Wide Base

High Rigidity Roller Linear Rail

Reinforced Spinde Box Long Span Column

No Hammer Overweight Design

Standard Accessories:

Overview:
