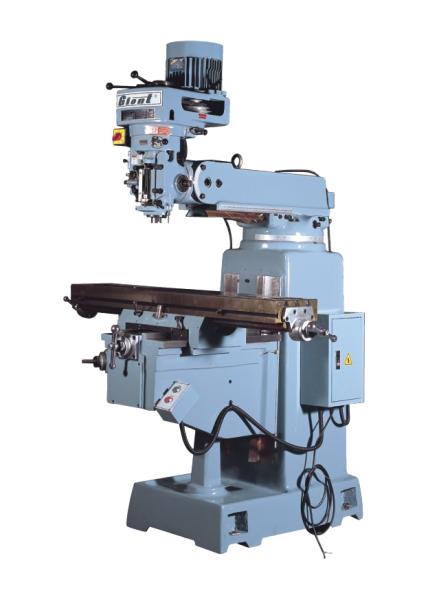

Taiwan Parts Milling Head Metal Manual Turret Milling Machine for Sale
Taiwan Parts Milling Head Metal Manual Turret Milling Machine for Sale
Specifications
Brand Name :
JOINT
Model Number :
4S
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Working table size :
1270*254mm
Three axis travel :
900/395/325mm
Distance from spindle nose to working table :
400mm
Spindle rotation speed :
4200rpm
Spindle taper :
R8(NT30)
Description

Product Introduction:

This S series type of milling machine is our second level. Using Taiwan parts, assembled by ourselves with strict assembling standard. If you don't have enough budget, but want high precision level machine. You can choose this type. Suitable for the manufacture and processing of precision plastic and hardware moulds and parts processing in other strong cutting occasions. Exclusive spindle assembly technology, precision and cutting efficiency. Spindle runout: 0.005mm.

Parameters Sheet:

Model 4S
Table size mm 1270*254*90
Travel X axis mm 900
Y axis mm 395
Z axis mm 325
Travel of spindle quill mm 127
Maximum distance from spindle nose to table mm 400
Spindle Rotation speed
(Step speed milling head)		 50HZ rpm 66-4540
60HZ rpm 80-5440
Rotation speed
(Variable speed milling head)		 50HZ rpm 40-3125
60HZ rpm 50-3750
Rotation speed
(Inverter speed milling head)		 50HZ rpm 0-4200
60HZ rpm 0-4200
Taper R8 (NT30)
Rated power HP 3HP
Tilt angle Forward and Backward ±45°
Left and Right ±90°
Dimension mm 1500*1700*2150
Net weight kg 1400


Standard Accessories:

1. Taiwan original step speed milling head
2. Working light
3. Draw bar
4. Maual oil pump
5. Manual operation
6. Guide way cover
7. Tool and tool box
8. Clamping kits
9. Milling chuck (7pcs)

Optional accessories:

1. Water pump

2. M12 clamping kits

3. 6' vise

4. X axisp ower feed or Y axis power feed or Z axis elevating motor

5. X/Y two axis/ X/Y/Z three axis DRO

Taiwan Parts Milling Head Metal Manual Turret Milling Machine for Sale Taiwan Parts Milling Head Metal Manual Turret Milling Machine for Sale Taiwan Parts Milling Head Metal Manual Turret Milling Machine for Sale

Power feed R8 milling chuck (7 pcs) Water tray
