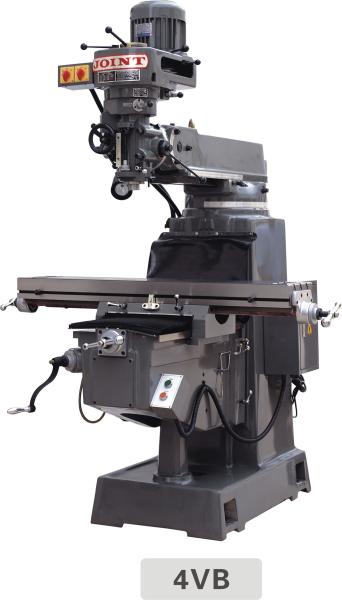

Joint Brand Taiwan Head Turret Mill Machine for Sale Manufacturer
Joint Brand Taiwan Head Turret Mill Machine for Sale Manufacturer
Specifications
Brand Name :
JOINT
Model Number :
4VB
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Spindle Taper :
R8/Nt30
Milling Head :
Step Speed Milling Head
Table Size :
1270*254*90mm
Bearing :
P4 Bearing
X Axis Travel :
880mm
Spindle Tolerance :
0.002mm
Description

High quality castings, precision processing to ensure excellent precision and stability

Machine fuselage is strengthened, and its milling head is Taiwan original milling head. Its bearing is Japan NSK P4 level high precision bearing. Spindle tolerance is high up to 0.002mm.

This series is super good. And our brand JOINT is famous even oversea. We exported lots of milling machine.

.

Parameters Sheet:

Model 4VB
Table size mm 1270*254*90
1370*254*90
Travel X axis mm 900
Y axis mm 440
Z axis mm 390
Travel of spindle quill mm 127
Maximum distance from spindle nose to table mm 420
Spindle Rotation speed
(Step speed milling head)		 50HZ rpm 60-4530 (16 grade)
60HZ rpm 80-5440 (16 grade)
Rotation speed
(Variable speed milling head)		 50HZ rpm 50-3500
60HZ rpm 60-4200
Rotation speed
(Inverter speed milling head)		 50HZ rpm 0-4200
60HZ rpm 0-4200
Taper R8 (NT30)
Rated power HP 3HP
Tilt angle Forward and Backward ±45°
Left and Right ±90°
Dimension mm 1500*1700*2150
1600*1800*2150
Net weight kg 1500


Standard Accessories:

1. Working light

2. Way cover

3. R8/3HP spindle Taiwan parts step speed milling head

4. R8 inch draw bar

5. Technical document

6. Accompanied toolbox

7. M12 clampking kit

8. R8 milling chuck(7 pcs)

Optional accessories:

1. R8 (7 pcs) milling chuck

2. M12 clamping kits

3. 6' vise

4. X axisp ower feed or Y axis power feed or Z axis elevating motor

5. X/Y two axis/ X/Y/Z three axis DRO

Joint Brand Taiwan Head Turret Mill Machine for Sale Manufacturer Joint Brand Taiwan Head Turret Mill Machine for Sale Manufacturer

Package:
Joint Brand Taiwan Head Turret Mill Machine for Sale Manufacturer
Joint Brand Taiwan Head Turret Mill Machine for Sale Manufacturer
Joint Brand Taiwan Head Turret Mill Machine for Sale Manufacturer
