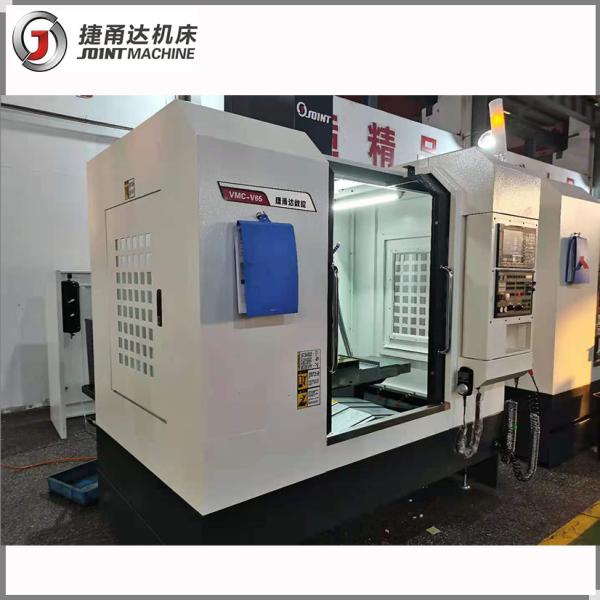

700*420mm Table AICC2 CNC Milling Machine 7.5kw Small Vertical Machining Center
700*420mm Table AICC2 CNC Milling Machine 7.5kw Small Vertical Machining Center
700*420mm Table AICC2 CNC Milling Machine 7.5kw Small Vertical Machining Center
700*420mm Table AICC2 CNC Milling Machine 7.5kw Small Vertical Machining Center
Specifications
Brand Name :
JOINT
Model Number :
VMC-V65
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, T/T
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Woking table size :
700*420
X axis travel :
600
Y axis travel :
400
Z axis travel :
420
Spindle rotation speed :
1000/12000/15000rpm
Spindle motor rate :
7.5kw
Description

Introduction:


This V series CNC machine center has the characteristics of fast feed speed and high rotation speed, so it is suitable for batch parts with many tools, complicated processing and multiple processes. Mainly processing cabinets, complex curved surfaces, heterosexual parts, disks, sleeves, plate parts, etc., are widely used in electronics, machinery and automotive, automation, medical, national defense and other fields.

Product Characteristics:

1. V-series machines are designed for high efficiency parts processing.
Three axis adopt ball linear guide way or roller linear guide way, rapid feed:48m/min

2. The unique large-span structure of the base and column can withstand the inertia caused by high G with high overall dynamic response.

3. The direct-connected short nose high-speed spindle can improve efficiency, reduce tool wear and maximize the transmission efficiency of the spindle motor. Improving processing accuracy and extending spindle life.

4. Equipped the rear chip conveyor with a large flow chip removal system, which can meet the requirements of rapid chip removal..

Fuselage details:

Standard accessories:
1. Mitsubishi/ Fanuc controller system with AICC2 Function
V65 belt connectin with 10000rpm spindle
2. Fully enclosed cover
3. Pneumatic system
4. Anto lubrication system
5. Work piece coolant system
6. Heat exchange
7. Air gun
8. Water gun
9. Spindle oil coolant
10. 24T Arm type tool magazine
11. Rear flishing
12. Hand wheel
13. RS232 Interface
14. Alarming light
15. Working light
16. Guide way cover
17. Technical documents
18. Operation manual

Optional accessories:
1. Screw type conveyor
2. Chain type conveyor
3. 4 axis Rotary table
4. Coolant through spindle (CTS)
5. Spindle rotation speed can be direct connection with 12000rpm.

Products Fuselage:

700*420mm Table AICC2 CNC Milling Machine 7.5kw Small Vertical Machining Center

700*420mm Table AICC2 CNC Milling Machine 7.5kw Small Vertical Machining Center

Overview:

Package:

700*420mm Table AICC2 CNC Milling Machine 7.5kw Small Vertical Machining Center

700*420mm Table AICC2 CNC Milling Machine 7.5kw Small Vertical Machining Center
