Small Size CNC Flat Bed Lathe Machine With 48mm Spindle Bore 3000rpm Speed
Small Size CNC Flat Bed Lathe Machine With 48mm Spindle Bore 3000rpm Speed
Specifications
Brand Name :
JOINT
Model Number :
CKH-3229
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1 Set
Price :
NEGOTIATION
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/year
Delivery Time :
NEGOTIATION
Packaging Details :
Wooden Plate or/ and Wooden Case
Max Swing Dia over Bed :
320mm
Max Swing Diaover Slide :
160mm
Max Processing Length :
240mm
Spindle Rotation Speed Range (inverter) :
100-3000rpm
Spindle Motor Rate :
4kw
Chuck :
Manual/hydraulic
X axis max travel :
230mm
Z axis max travel :
290mm
Description

Product features:
1. Flat bed, equipped with Taiwan linear guideway, improving its processing speed and product accuracy stability.

2. Angular contact spindle bearing, strengthed spindle rigidity and accuracy, improving the cutting capability of product.

3. Middle placed ball screw, stengthed stability of maching when processing.

4. With its high efficiency and high cost performance, it has become the most competitive product for turning small parts such as plumbing valves and jewelry.


Product specifications:

ItemUnitCKH-3229
Max swing over bed mm320
Max turning diameter on carriage (mm)160
Max cutting length(mm)240
Spindle motor rate(KW)4
Hydraulic chuck diametermm10''
Spindle max rotation speedrpm100-3000
Spindle hole diametermmØ48
Work piece bar diametermmØ40
X axis max travel 230
Z axis max travel 290
Tool Gang-tyoe tool
Bed form Flat bed
Guideway form (X/Z) Direct linear guideway
Tailstock power Without tailstock
X axis rapid movementmm/min12
Z axis rapid movementmm/min14
Dimension (L*W*H)mm1780*1230*1770
Weight Kg1035


Standard Accessories:

1) GSK TDI Control system

2) 3 pcs gantry type tool holder

3) 4KW inverter speed spindle motor

4) Pneumatic collet

5) Chinese brand spindle

6) Chinese famous brand bearing and ball screw

7) Taiwan PMI/HIWIN brand linear way

8) Fully closed cover

9) Auto lubrication system

10) Work piece cooling system

11) Alarming light

12) Working light

13) Guide cover

14) Iron pad

15) Accompanied tool box (self-contained tool)

16) technical documents

Optional Accessories:
1. Hydraulic chuck
2. power feed



Product applicant:
Small Size CNC Flat Bed Lathe Machine With 48mm Spindle Bore 3000rpm Speed

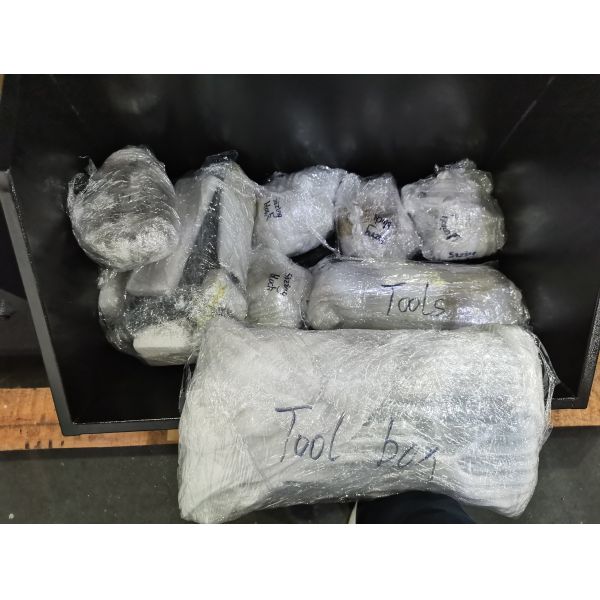

Package:
Small Size CNC Flat Bed Lathe Machine With 48mm Spindle Bore 3000rpm Speed





Small Size CNC Flat Bed Lathe Machine With 48mm Spindle Bore 3000rpm Speed

Small Size CNC Flat Bed Lathe Machine With 48mm Spindle Bore 3000rpm Speed
