NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm
NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm
Specifications
Brand Name :
JOINT
Model Number :
5VB
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, T/T
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
Wooden pallet/ wooden case
Three axes stroke :
810/415/420mm
Dimension :
1500*1900*2450mm
Gross weight :
1800kgs
Spindle rotation speed :
70-3600rpm
Rotation Angle forward and backward :
±45°
Rotation Angle left and right :
±90°
Description

High quality castings, precision processing to ensure excellent precision and stability:

This series milling machine spindle tolerance can reach 2μ, 0.002mm.

The fuselage will be scrapped twice before assembling in otder to reach our inner strict standard.
This series milling head is Taiwan original milling head and its bearing is Japan NSK P4 precision spindle bearing.

This series is suitable for precision electronic machinery, presicion electronic devices, mold parts and other precision parts of the hole, groove, frame.

Specification:

Model 5VB
Table size mm 1470*305*90
Travel X axis mm 810
Y axis mm 415
Z axis mm 420
Travel of spindle quill mm 150
Maximum distance from spindle nose to table mm 620
Spindle Rotation speed
(Step speed milling head)		 50HZ rpm 70-3600 (10 grade)
60HZ rpm 70-3600 (10 grade)
Rotation speed
(Variable speed milling head)		 50HZ rpm 60-3250
60HZ rpm 70-3900
Rotation speed
(Inverter speed milling head)		 50HZ rpm 0-4200
60HZ rpm 0-4200
Taper NT40
Rated power HP 5HP
Tilt angle Forward and Backward 0° (±45° optional)
Left and Right ±90°
Dimension mm 1500*1900*2450
Net weight kg 1800

VA series standard accessorie:

1. Taiwan original step milling head

2. Working light

3. Guideway cover

4. M12 clamping kit

5. R8 collet (7 pcs)

6. Draw bar

7. Manual oil pump

8. Accompanied toolbox

Optional accessories:

1. 6'' or 8'' vise

2. Electric power feed (2 axis and 3 axis)

3. Mechnical power feed (2 axis and 3 axis)

4. Water pump+water tray

5. Dro(2 axis or 3 axis)

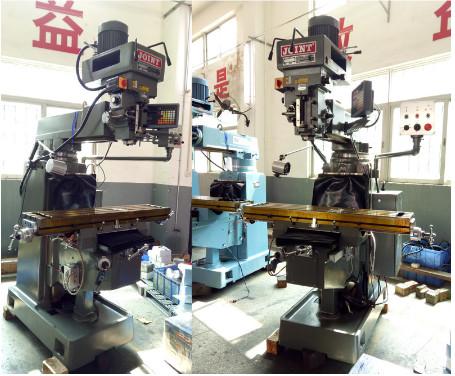

NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm

NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm

Overview:

Package:

NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm

NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm

NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm
