PLC Controlled Positive Pressure Conveying Silo Type Dense Phase Pneumatic Conveying Equipment

Description

The working principle of the silo pump system is dense phase low-speed pneumatic conveying, which transports materials at a speed lower than the suspension speed. At this speed, unlike individual material conveying, the material does not need to be completely mixed with the conveying medium; The material moves along the pipeline in a continuous sand dune like or alternating state between air and material plugs. To some extent, this conveying method allows the conveying speed of materials to be much lower than the suspension speed, thus avoiding the conventional problems caused by high material speed in traditional pneumatic conveying.

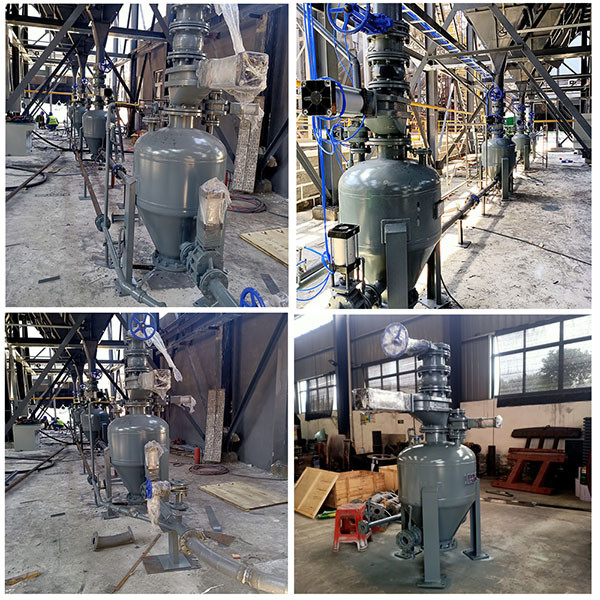

The silo pump is equipped with a pressure sealed dome valve that can be closed through a stationary material column. The bin pump adopts a bottom discharge pipe, and the control gas system is installed on the installation base of the first bin pump in the bin pump conveying system unit. Multiple feeding points are connected in series to form a conveying pipeline, and the entire set of silo pumps feed synchronously. The signal from one or more ash hopper level meters will activate the silo pump system to start the conveying cycle.

The silo pump system adopts a dome valve as the feed valve. Within the set feeding time, the dome valve opens and the pressure tank is charged. Once the material is full, the dome valve is closed and sealed; The conveying medium enters the pressure tank, usually using compressed air. The temporary resistance caused by the material will transport the material to the target silo. During the transportation of materials along the pipeline, the air pressure gradually decreases. When the material reaches the target silo, the pressure of the air decreases to near atmospheric pressure, which will be detected by the control system. Then the pressure tank stops feeding, the dome valve opens, and the pressure tank is fed again.

If the bin pump stops continuous circulation, the dome valve will remain closed and there will be no material in the pressure vessel.

The automatic operation of the entire system can be achieved through the material level control devices of the feeding silo and the target silo. The material level control should ensure that the receiving silo is in a full state or meets other requirements. As the main electrical part, material level control can change the conveying cycle by opening the directional function of the shunt valve, and transport the material to any desired target bin.

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Main features of the product

① Large conveying capacity: ＞ 300t/h;

② Long distance: ＞ 2000m;

③ Low power consumption: ＜ 3.8kWh/t · km;

④ Low wear and tear: pipeline life>10 years;

⑤ Low speed: initial speed 6-10m/s;

⑥ High mixing ratio: ＞ 30kg/kg;

⑦ Flexible process layout, dust-free, high operation rate, lower investment compared to mechanical conveying, and lower maintenance costs

Application Area

PCD pneumatic conveying equipment and systems have been widely used in industries such as building materials, chemicals, mining, power, and metallurgy. The conveying materials include cement, raw materials, fly ash, hydrated lime, dry discharged calcium carbide slag, slag powder, steel slag powder, coal powder, aluminum oxide powder, bauxite powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.

In terms of positive pressure dense phase intermittent pneumatic conveying, the company has always been committed to theoretical research and engineering practice experience summary of pneumatic conveying systems, focusing on breaking through the key technologies of long-distance, high production, low energy consumption, and low wear in the pneumatic conveying process. The core product is the PCD type positive pressure dense phase pneumatic conveying silo pump, while providing systematic, standardized, and refined engineering design and technical services. To meet the needs of different customers, we create the best design plan based on parameters such as material properties, conveying distance, conveying capacity, receiving warehouse capacity, dust removal capacity, and geographical conditions. Each equipment is manufactured through qualified inspection, and each pneumatic conveying system has its own design features, allowing customers to truly experience the intelligent management and economic benefits brought by advanced technology products.
