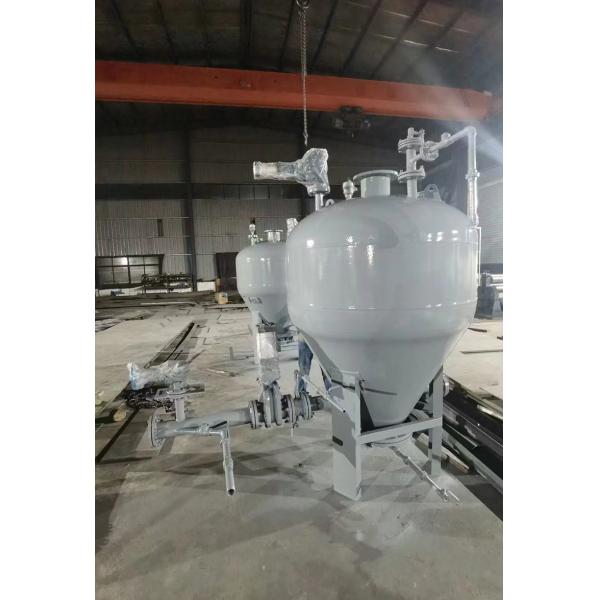

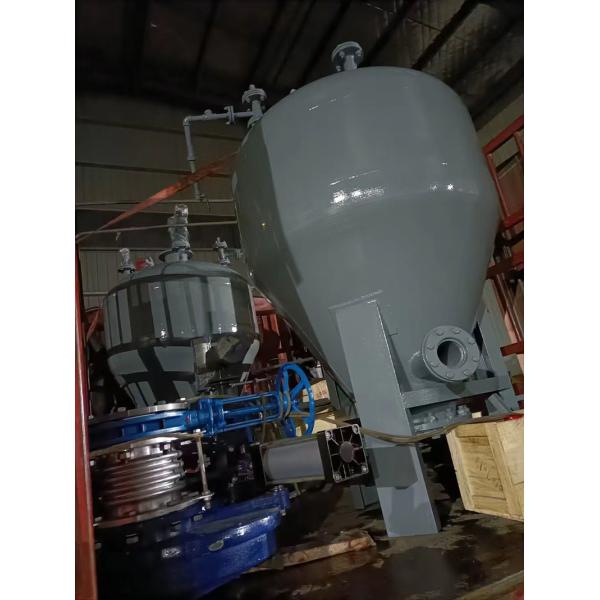

Large Delivery Volume Pneumatic Conveying Pump Dust Silo Pump

Description

【Product Main Features】

①Large conveying capacity: >300t/h;
②Long distance: >2000m;
③Low power consumption: <3.8kWh/t·km;
④Small wear: the life of the pipeline is more than 10 years;
⑤Low speed: initial speed 6～10m/s;
⑥ High mixing ratio: >30kg/kg;
⑦ Flexible process layout, no dust, high operation rate, lower investment and less maintenance cost than mechanical conveying

【Application Field】

PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical industry, mining, electric power, metallurgy and other industries. The conveying materials are: cement, raw meal, fly ash, slaked lime, dry-discharge carbide slag, slag powder, steel slag powder, coal powder, alumina powder, vitriol powder, phosphorus powder, pyrophyllite powder and organic silicon powder, etc.

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

PCD type positive pressure dense phase pneumatic conveying warehouse pump After years of research, combined with rich practical experience, our company has developed pneumatic conveying equipment and process systems with independent intellectual property rights, and its main indicators have reached the international advanced level. The volume of the pump is determined according to the nature, particle size, conveying distance and conveying volume of the conveyed material, that is, a stand-alone design is carried out, so that the conveying energy consumption can be minimized on the premise of meeting the technological requirements.

At present, our longest horizontal conveying distance is 2200m and height is 30m; the maximum conveying capacity of a single unit is 300 t/h; the conveying energy consumption is less than 3.8kWh/t·km, the service life of the straight pipeline is more than 10 years, and the service life of the elbow is 3 years or more. According to the requirements of customers, according to the specifications and performance of powder materials, conveying distance, conveying volume and geographical conditions and other parameters provided by customers, we specifically formulate the best plan for engineering design and equipment selection, such as the calculation of air volume and the ratio of pipelines. , Receiving warehouse dust collection and after-sales plan, etc.
