Stainless Steel Airlock Rotary Valve Feeder For Cement Electricity Chemical
Stainless Steel Airlock Rotary Valve Feeder For Cement Electricity Chemical
Stainless Steel Airlock Rotary Valve Feeder For Cement Electricity Chemical
Stainless Steel Airlock Rotary Valve Feeder For Cement Electricity Chemical
Specifications
Brand Name :
Hengcheng
Model Number :
ALRF630×630 ALRF1000×1000 ALRF1200×1200 ALRF1600×1200 ALRF1800×1400 ALRF2200×1600
Certification :
ISO Patent Certificate High-Tech Product Certificate
Place of Origin :
Anhui,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets/month
Delivery Time :
60 days
Packaging Details :
Standard shipping packaging
Name :
Rotary Airlock Feeders
Applicable Materials :
Powdery and granular materials
Application field :
Cement, electric power, chemical industry, metallurgy, lime kiln, mineral processing
processing capacity :
35m3/h-700m3/h
Rotor speed :
0.6r/min-6.65r/min
Motor power :
4kW/960r/min-15kW/1460r/min
Rotor blade material :
Special wear-resistant material
Component :
housing, rotor, drive
Description

Good Air Lock Effect Even Feeding Rotary Airlock Feeders For Cement Electricity Chemical

Working principle:

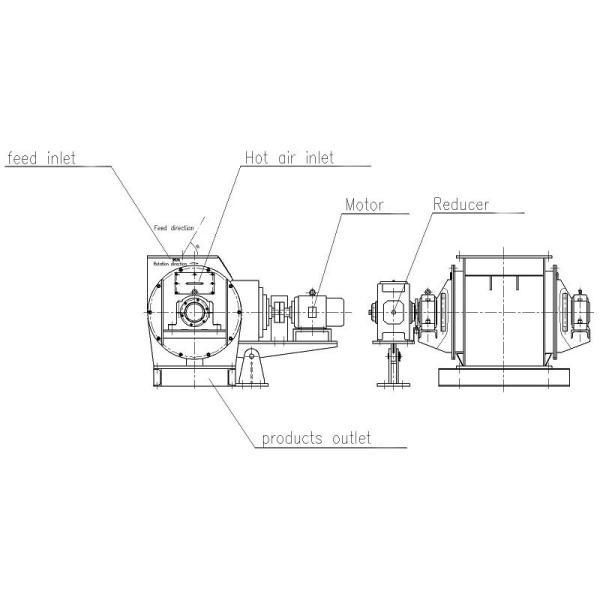

The rotary air lock feeder is composed of a casing, a rotor, and a driving part. There is a rotor with multiple blades inside the feeder. The material in the upper silo falls by its own weight and fills the gap between the blades, and the material is discharged at the lower material port with the rotation of the rotor. Because the space between the rotor blades is uniform, the rotor speed is constant.

Stainless Steel Airlock Rotary Valve Feeder For Cement Electricity Chemical

ALRF Series Rotary Lock Air Feeder

Specification Model Processing Capacity Rotor Speed Motor Power& Speed
ALRF630×630 ～35m3/h 10.6r/min 4kW/960r/min
ALRF1000×1000 ～120m3/h 9.22r/min 5.5kW/1440r/min
ALRF1200×1200 ～160m3/h 8.26r/min 7.5kW/1440r/min
ALRF1600×1200 ～360m3/h 6.67r/min 11kW/1460r/min
ALRF1800×1400 ～460m3/h 6.67r/min 15kW/1460r/min
ALRF2200×1600 ～700m3/h 6.65r/min 15kW/1460r/min

Stainless Steel Airlock Rotary Valve Feeder For Cement Electricity Chemical

The rotor blade is made of special wear-resistant material, which can ensure that the blade end has good contact with the inner wall of the shell, and the blade end can be easily adjusted after wear to keep it in good contact with the inner wall of the shell, with good air lock Function. The rotor can be ventilated with hot air, has a certain drying capacity, and can adapt to high-moisture and viscous materials to prevent materials from sticking and blocking.

This product can be used as a special lock-air feeder for vertical mills, and can also be used as a lock-air feeder for air-swept ball mills.

★Main features of the product

ALRF series rotary air lock feeder has the characteristics of small wear, good air lock effect and uniform feeding.

★Application field

ALRF series rotary air lock feeder is suitable for powder materials and granular materials, and is widely used in cement, electric power, chemical industry, metallurgy, lime kiln, mineral processing and other industries.
