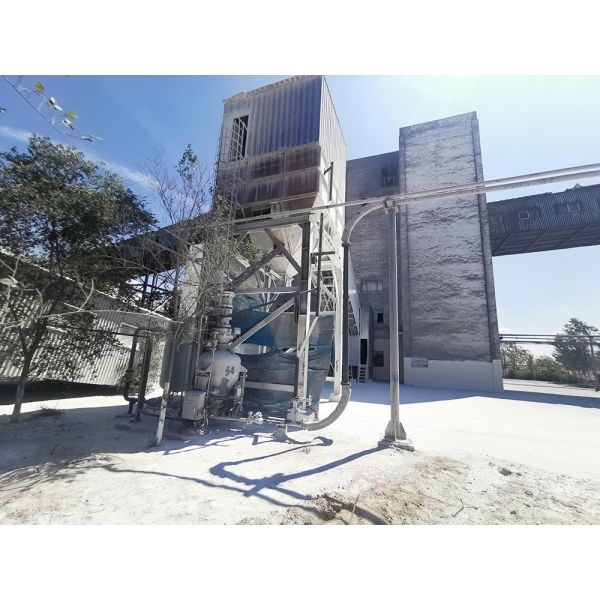

Low Wear Pneumatic Conveying Silo Pump Industrial Dense Phase Pneumatic Pump System For Fly Ash Handling
Low Wear Pneumatic Conveying Silo Pump Industrial Dense Phase Pneumatic Pump System For Fly Ash Handling
Specifications
Brand Name :
Hengcheng
Model Number :
PCD24/H PCD26/H PCD28/H PCD30/H
Certification :
ISO Patent Certificate High-Tech Product Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets\month
Delivery Time :
60 days
Packaging Details :
Standard shipping packaging
Name :
Pneumatic conveying silo pump
pump capacity :
10-260 m³
discharge size :
DN50 - DN300
material type :
Coal powder, limestone powder/mineral powder, cement/raw materials
After-sales Service Provided :
Engineers available to service machinery overseas
Application scope :
Fly ash conveying
Scope of use :
Pneumatic conveying
Customizable :
Customizable
Purpose :
Pneumatic conveying of powder and particle materials
Description

Low Wear Pneumatic Conveying Silo Pump Industrial Dense Phase Pneumatic Pump System For Fly Ash Handling

1. Product Overview
Our pneumatic conveying silo pump is a high - performance equipment designed for the efficient transportation of bulk materials.Based on the specifications and performance of the powder materials provided by the customer, as well as the parameters such as conveying distance, conveying volume, and geographical conditions, develop the best plan for pneumatic conveying, including calculation of air volume, pipeline ratio, dust collection and treatment in the receiving warehouse, and after-sales planning. It is widely used in various industries such as power plants, cement factories, chemical plants, and food processin
2. Working Principle
The pneumatic conveying silo pump operates based on the principle of positive - pressure pneumatic conveying. The working process can be divided into the following steps:​
Filling Phase: First, the inlet valve and exhaust valve of the silo pump are opened. The pump is filled with materials under normal pressure until the level gauge indicates that the silo is full.​
Pressurization Phase: After filling, the inlet valve and exhaust valve are closed, and then the high - pressure air valve is opened to pressurize the inside of the tank.​
Conveying Phase: When the operating pressure is reached, the conveying air valve and discharge valve are opened. The pressurized air pushes the materials in the silo pump into the conveying pipeline, and the materials are transported to the designated location.​
Emptying and Depressurization Phase: Once the conveying is completed, as indicated by the pressure switch, level gauge, or time relay, the high - pressure air valve and discharge valve are closed. All the compressed air is used to clean the conveying pipeline. At the same time, the exhaust valve is opened to reduce the pressure in the tank to normal pressure, completing one working cycle.

3.Main features of the product:
① Large conveying capacity: 300t/h；
② Long distance:> 2000m；
③ Low power consumption:< 3.8kWh/t·km；
④ Low wear and tear: pipeline lifespan>10 years;
⑤ Low speed: Initial speed of 6-10m/s;
⑥ High mixing ratio:> 30kg/kg；
⑦ Flexible process layout, no dust, high operating rate, lower investment compared to mechanical conveying, and lower maintenance costs.

Low Wear Pneumatic Conveying Silo Pump Industrial Dense Phase Pneumatic Pump System For Fly Ash Handling
Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m³) Model PCD24/H PCD26/H PCD28/H PCD30/H Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 50~80 60~90 65~110 80~130 200 20
Fly Ash 0.75 75~125 85~130 95~160 125~190 200 20
Limestone Powder/Mineral Powder 0.8 80~130 90~140 100~170 130~200 200 20
Cement/Raw Meal 1 100~150 115~175 130~215 165~260 200 20


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m3) Model PCD24/L PCD26/L PCD28/L PCD30/L Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 20~40 25~45 30~55 45~65 1000 25
Fly Ash 0.75 35~60 45~65 45~80 65~95 1000 25
Limestone Powder/Mineral Powder 0.8 40~65 45~70 50~85 70~100 1000 25
Cement/Raw Meal 1 50~80 55~90 65~110 90~120 1000 25

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density(t/m³) Model PCD18/N PCD20/N PCD20/N Reference Conveying Distance
Specification 5.0~6.7m³ 7.0~10.0m³ 10.0~15.0m³ Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 12~20 16~32 25~50 500 30
Fly Ash 0.75 18~32 25~48 35~70 50
Limestone Powder/Mineral Powder 0.8 20~35 26~51 38~75 500 30
Cement/Raw Meal 1.0 24~42 32~65 48~95 500 30
Silicon Powder 1.2 28~50 40~75 55~115 500 30

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Material Bulk Density(t/m³) Model PCD08/M PCD10/M PCD12/M PCD14/M Reference Conveying Distance
Specification 0.2~0.5m³ 0.6~1.6m³ 1.5~2.5m³ 2.5~5.0m³ Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 0.5~1.8 1.5~5.5 5.0~9.0 8.0~18.0 100 20
Fly Ash 0.75 0.9~2.8 2.5~8.5 7.0~14.0 12.0~27.0 100 20
Limestone Powder/Mineral Powder 0.8 1.0~3.0 3.0~9.0 8.0~15.0 12.0~28.0 100 20
Cement/Raw Meal 1.0 1.2~3.5 3.5~11.5 10.0~18.0 16.0~36.0 100 20
Silicon Powder 1.2 1.5~4.0 4.5~13.5 12.0~20.0 19.0~43.0 100 20

4. Application Fields​
Power Plants: Widely used for the transportation of fly ash, ensuring the efficient operation of power generation systems and the proper disposal of by - products.​
Cement Industry: Used for the transportation of cement, cement raw materials, and mineral powder, helping to improve the production efficiency and product quality of cement plants.​
Chemical Industry: Suitable for transporting various chemical powders and granules, meeting the strict requirements of the chemical production process for material transportation.
5. Customization and Service​
Based on the specifications, performance, conveying distance, conveying capacity, and geographical conditions provided by the customer, develop the optimal engineering design and equipment selection plan, including calculation of air volume, pipeline ratio, dust collection and treatment in the receiving warehouse, and after-sales plan.
​
In addition, we offer comprehensive after - sales service, including installation guidance, commissioning, operator training, and regular maintenance and repair services. Our goal is to ensure that your equipment operates smoothly and efficiently for a long time.​
If you are interested in our pneumatic conveying silo pump or have any questions, please feel free to contact us. Our contact information is as follows:​
Contact Number: +86 17730201127
Email: margo@gmail.com
Let us work together to find the best material transportation solution for you!
​
