Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Specifications
Place of Origin :
Guangdong, China
Model Number :
JTT-550 2V3R
Brand Name :
JINTONG
Packaging Details :
plastic film packing for two color injection molding machine price JTT-550 2V3R
Supply Ability :
600 Piece/Pieces per Month two color injection molding machine price JTT-550 2V3R
Price :
$37,000.00/pieces 1-2 pieces
Plastic Processed :
PP, TPE
Condition :
New
Style :
VERTICAL
Plasticizing Capacity(g/s) :
200
Mold Height(mm) :
120 - 350 mm
Ejector Number :
Other
Ejector Stroke(mm) :
45 mm
Ejector Force(kN) :
13 kN
Theoretical Shot Volume(cm³) :
118 cm³
Injection Rate (g/s) :
72 g/s
Machine Type :
Hydraulic
Injection Weight (g) :
108 g
Screw Speed (rpm) :
1 - 190 rpm
Screw diameter (mm) :
32 mm
Screw L/D Ratio :
24
Distance between Tie Bars :
380mm
Weight (KG) :
2500 kg
Type :
Other
Open Stroke(mm) :
300 mm
Power (kW) :
14.5kW
Warranty :
1 Year
Key Selling Points :
Flexible Manufacturing
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, Pressure vessel
Injection Weight :
68-90G
Injection Rate :
69-88CM3/S
Opening Stroke :
180MM
After-sales Service Provided :
Engineers available to service machinery overseas
screw diameter :
18mm 22mm 25mm
oil tank :
300L
Product name :
two color injection molding machine price JTT-550 2V3R
rotary table diameter :
940mm
top platen size :
460*380mm
max daylight :
280/380mm
Port :
SHENZHEN
Description

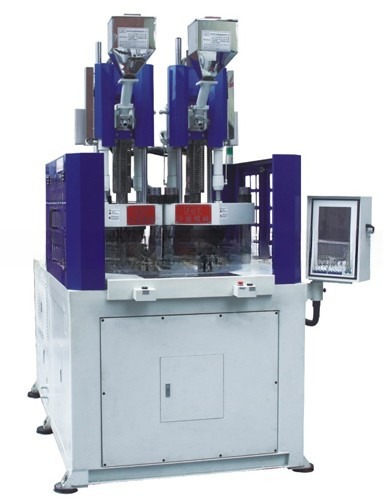

460*380mm Top Platen Size Hydraulic Two Color Injection Molding Machine JTT-550 2V3R

Product Description

Two color injection molding machine price JTT-550 2V3R

Clamping Force: 55T

Injection Weight: 68-90g

1. Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
2. Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
3. One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
4. Injection system can be used individually
5. two color/material inject at the same time, suitable for all kinds of mold

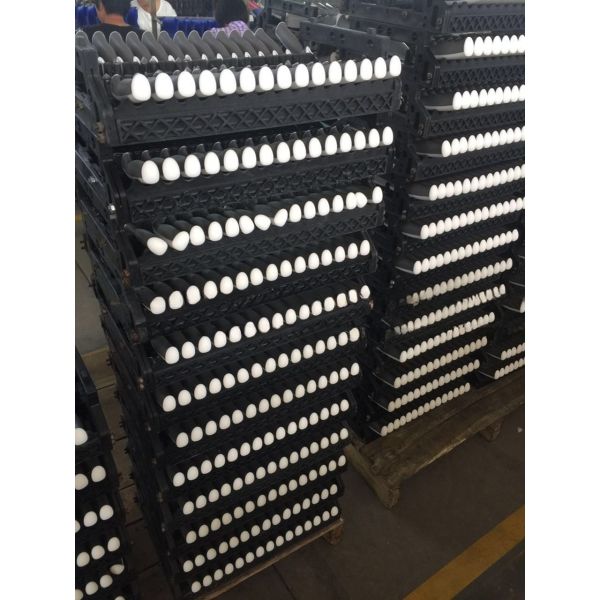

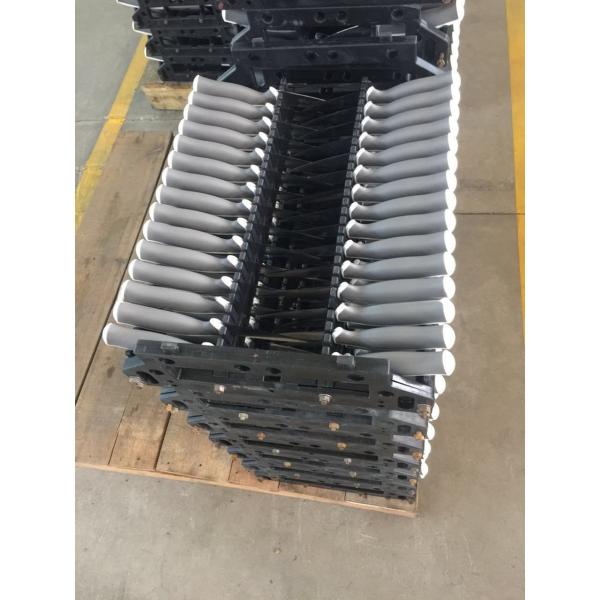

6. samples: tooth brush, trademark, different kinds of accessories,handle of bicycle or electric vehicles

Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R

Main Features

Don’t ejector mold after finishing first injection system, and direct transfer to second injection system, and molding after second injection, without shrink or excessive glue
Optional automatic device for taking in or out to make unmanned automation equipment
Use special central shunt valve design, single direction rotary to avoid problems with water cooling lines.

Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Certifications
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R

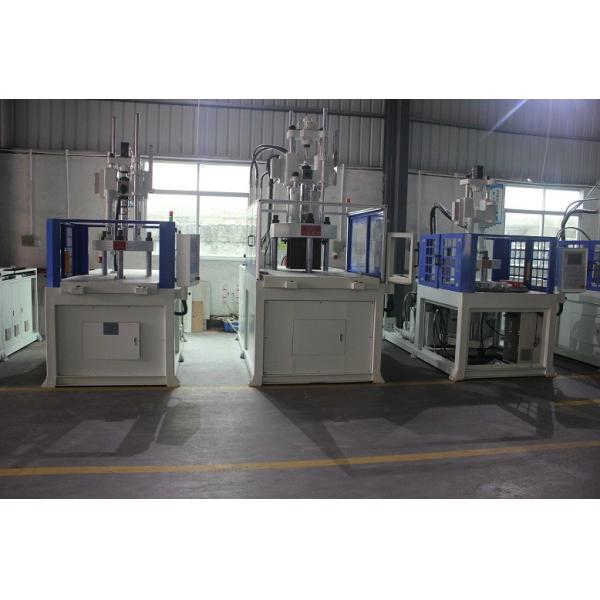

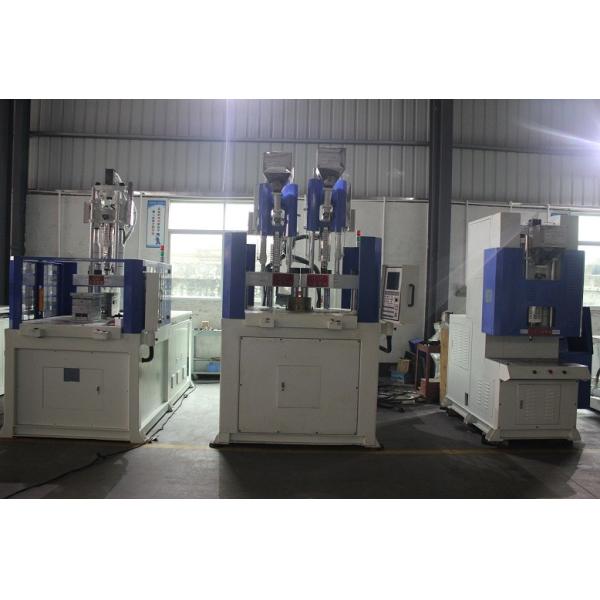

Detailed Images
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Our Service
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

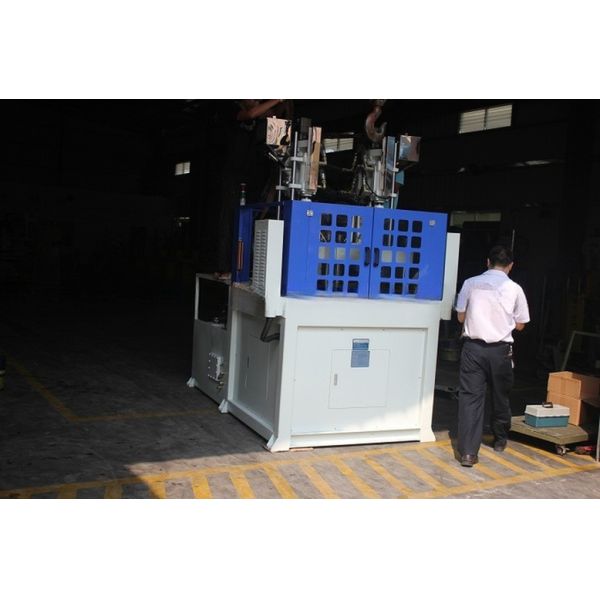

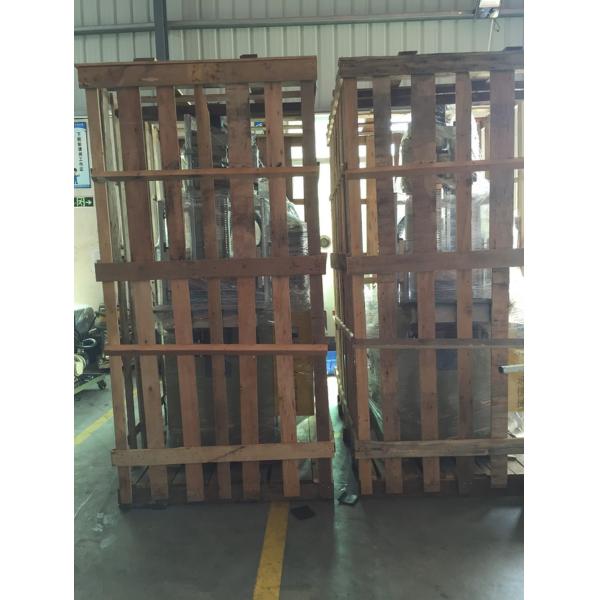

Packing & Delivery
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
Hydraulic Two Color Vertical Injection Molding Machine 14.5kW JTT-550 2V3R
