400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
Specifications
Place of Origin :
Guangdong, China
Model Number :
JTT2V3R- 2400
Brand Name :
JINTONG
Packaging Details :
plastic film for center turret two color plastic injection molding machine
Supply Ability :
100 Piece/Pieces per Month
Price :
$76,000.00/pieces 1-2 pieces
Plastic Processed :
PP/TPE
Condition :
New
Style :
VERTICAL
Plasticizing Capacity(g/s) :
200
Mold Height(mm) :
150 - 500 mm
Ejector Number :
2
Ejector Stroke(mm) :
110 mm
Ejector Force(kN) :
80 kN
Theoretical Shot Volume(cm³) :
725 cm³
Injection Rate (g/s) :
314 g/s
Machine Type :
Hydraulic
Injection Weight (g) :
573 g
Screw Speed (rpm) :
1 - 200 rpm
Screw diameter (mm) :
55 mm
Screw L/D Ratio :
22
Distance between Tie Bars :
650mm
Weight (KG) :
13000 kg
Type :
Other
Open Stroke(mm) :
400 mm
Power (kW) :
51.6 kW
Warranty :
1 Year
Key Selling Points :
High Productivity
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, PLC, Pressure vessel, Engine
Opening Stroke :
250MM
After-sales Service Provided :
Engineers available to service machinery overseas
screw diameter :
42mm 48mm 55mm
oil tank :
900L
Product name :
center turret two color plastic injection molding machine
top platen size :
920*1200mm
max daylight :
650mm
min old height :
300mm
ejector force :
3.5T
Injection Rate :
151-314CM3/S
Port :
SHENZHEN
Description

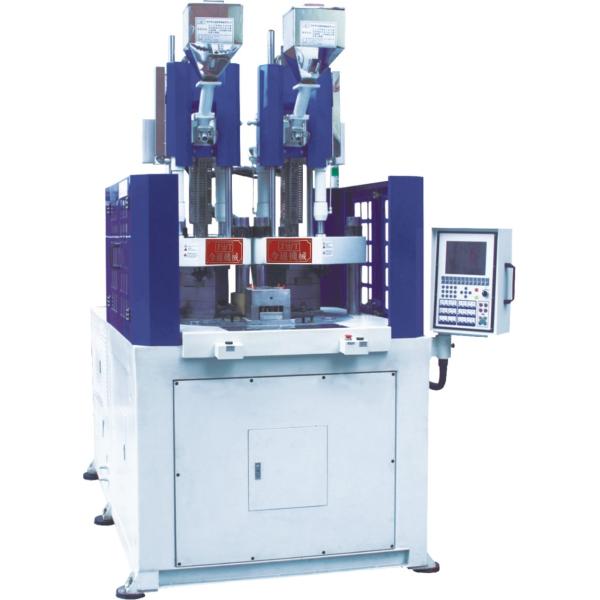

400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine JTT2V3R-2400

Product Description

center turret two color plastic injection molding machine JTT2V3R-2400

Clamping Force: 240T

Max Injection Weight: 724g

1. Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
2. Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
3. One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
4. Injection system can be used individually
5. two color/material inject at the same time, suitable for all kinds of mold
6. samples: tooth brush, trademark, different kinds of accessories,handle of bicycle or electric vehicles

400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400

Main Features

Don’t ejector mold after finishing first injection system, and direct transfer to second injection system, and molding after second injection, without shrink or excessive glue
Optional automatic device for taking in or out to make unmanned automation equipment
Use special central shunt valve design, single direction rotary to avoid problems with water cooling lines.

Certifications
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400

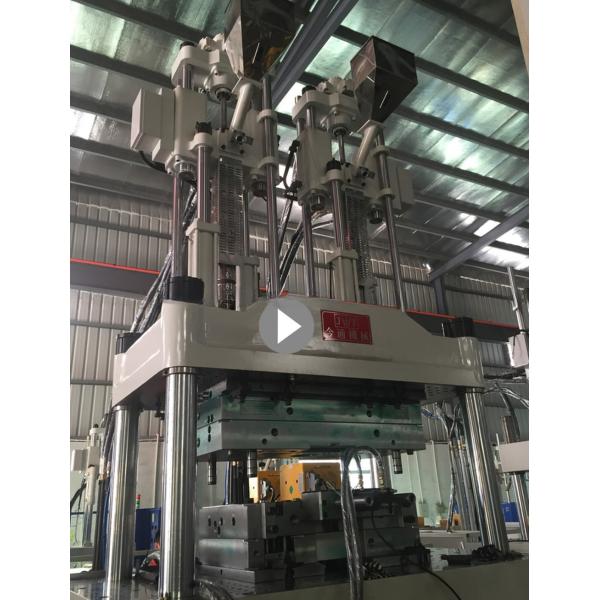

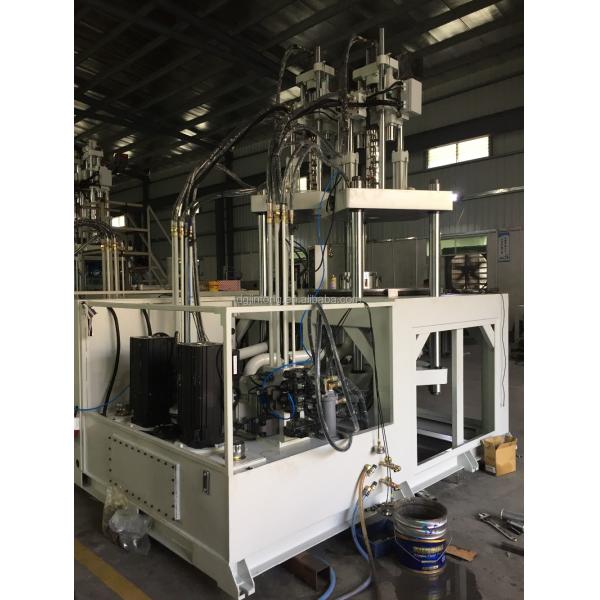

Detailed Images
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
Our Service
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400
400mm Open Stroke Center Turret Two Color Plastic Injection Molding Machine 240T JTT2V3R-2400

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
