High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
Specifications
Place of Origin :
China
Model Number :
JTT-2000R
Brand Name :
JINTONG
Certification :
ISO9001 CE
Packaging Details :
plastic film packing for rotary vertical injection moulding machine
Supply Ability :
400 Piece/Pieces per Month rotary vertical injection moulding machine
Price :
$62,000.00 - $66,000.00/pieces
Plastic Processed :
PP, ABS, TPE
Condition :
New
Style :
VERTICAL
Ejector Stroke(mm) :
75 mm
Ejector Force(kN) :
48 kN
Theoretical Shot Volume(cm³) :
678 cm³
Injection Rate (g/s) :
212 g/s
Machine Type :
Hydraulic
Injection Weight (g) :
610 g
Screw diameter (mm) :
60 mm
Distance between Tie Bars :
760mm
Weight (KG) :
12000
Type :
screw injection
Open Stroke(mm) :
600 mm
Power (kW) :
44.3 kW
Warranty :
1 Year
Key Selling Points :
High Productivity
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, PLC, Pressure vessel
After-sales Service Provided :
Engineers available to service machinery overseas, Free spare parts, Online support
screw diameter :
50mm 55mm 60mm
screw stroke :
260mm
Product name :
rotary table vertical injection moulding machine JTT-2000R
opening force :
22.4T

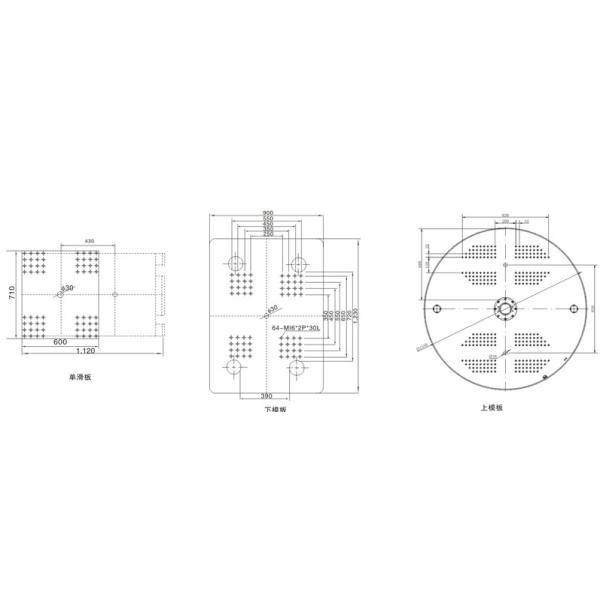

rotary table diameter :
1500mm
max daylight :
700/760mm
min old height :
300/360mm
ejector force :
3.4T
Machine dimension(L*W*H) :
3.0*2.2*3.6m
After Warranty Service :
Video technical support, Online support, Spare parts
Local Service Location :
United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Indonesia, Mexico, Russia, Thailand, Malaysia, Australia, Argentina, Colombia, Bangladesh, South Africa, Ukraine
Marketing Type :
Ordinary Product
Port :
SHENZHEN
Description

High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T

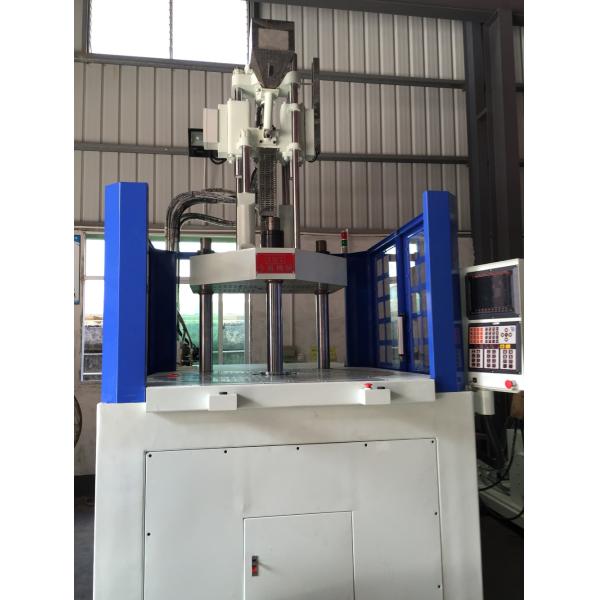

Rotary table vertical plastic injection moulding machine 200T JTT-2000R

Clamping Force: 200T

Injection Weight: 456-662g


Vertical clamping, vertical injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.

Optional energy-saving motor

High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T

Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
High Productivity Rotary Table Vertical Plastic Injection Moulding Machine 200T
