Specifications
Place of Origin :
Guangdong, China
Model Number :
JTT-450D
Brand Name :
JINTONG
Packaging Details :
plywood for single slide table vertical plastic injection molding machine 45T
Supply Ability :
600 Piece/Pieces per Month single slide table vertical plastic injection molding machine 45
Price :
$12,000.00 - $14,000.00/pieces
Plastic Processed :
PP, PA
Condition :
New
Style :
VERTICAL
Ejector Stroke(mm) :
45 mm
Ejector Force(kN) :
13 kN
Theoretical Shot Volume(cm³) :
115 cm³
Injection Rate (g/s) :
71 g/s
Machine Type :
Hydraulic
Injection Weight (g) :
105 g
Screw diameter (mm) :
35 mm
Distance between Tie Bars :
410mm
Weight (KG) :
1600 kg
Type :
Other
Open Stroke(mm) :
400 mm
Power (kW) :
9kW
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, PLC, Pressure vessel
Opening Stroke :
180mm
After-sales Service Provided :
Engineers available to service machinery overseas
screw diameter :
20mm 30mm 35mm
screw stroke :
120mm
Product name :
single slide table vertical plastic injection molding machine JTT-450D
opening force :
6.5T
platen size :
580*430mm
max daylight :
410/350mm
min old height :
210/150mm
ejector force :
1.3T
Port :
SHENZHEN
Description

45T VERTICAL Plastic Injection Molding Machine For Precise And Accurate Production

Product Description

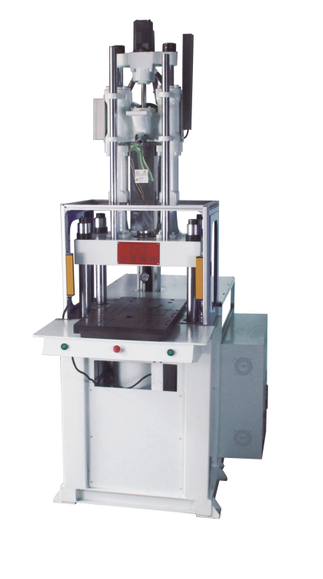

Single slide table vertical plastic injection molding machine 45T JTT-450D

Clamping Force: 45T

Max Injection Weight: 105g


Vertical clamping, vertical injection
D—single slide table(one up die and one low die)
Single slide table offer operation convenience
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand

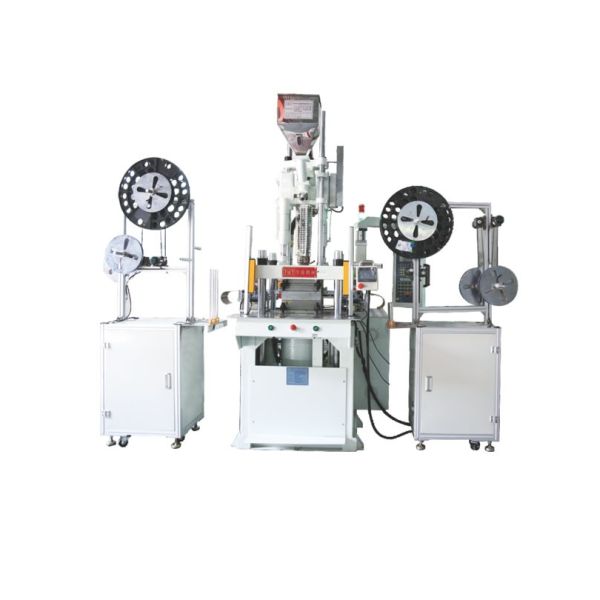

Combined with conveyor system used on production line

Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production

Main Features

With lower mold can slid out towards operation direction, inserts, placed parts and finished products are all finished outside the clamping unit. It works safely and suits for those inserts that are hard to place.

Suitable for all kinds of insert molding.

Nitrided steel screw and barrel, directly driven by high torque motor, with multi stages injection pressure, better plasticization.

Vertical compression clamping system, closing mold with high speed lower pressure as well as multi pressure control and prolong mold using life.

Electric protection device can not happen wrong action and maintain the operators safety.

Auto life injection base, it is easy for replacement of material and mold.

Certifications
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Detailed Images
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Our Service
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production
Precision 45T Vertical Plastic Injection Molding Machine For Precise / Accurate Production

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
