35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
Specifications
Place of Origin :
Guangdong, China
Model Number :
JTT-350
Brand Name :
JINTONG
Packaging Details :
plywood for manual vertical injection molding machine for chip 35T
Supply Ability :
600 Piece/Pieces per Month manual vertical injection molding machine for USB 35T
Price :
$8,200.00/pieces 1-4 pieces
Plastic Processed :
PP, PVC, PA, ABS/PP
Condition :
New
Style :
VERTICAL
Plasticizing Capacity(g/s) :
50
Mold Height(mm) :
110 - 240 mm
Ejector Number :
1
Ejector Stroke(mm) :
45 mm
Ejector Force(kN) :
13 kN
Theoretical Shot Volume(cm³) :
88 cm³
Injection Rate (g/s) :
50 g/s
Machine Type :
Hydraulic
Injection Weight (g) :
80 g
Screw Speed (rpm) :
1 - 205 rpm
Screw diameter (mm) :
32 mm
Screw L/D Ratio :
24
Distance between Tie Bars :
340mm
Weight (KG) :
1400 kg
Type :
Other
Open Stroke(mm) :
350 mm
Power (kW) :
6.7 kW
Warranty :
1 Year
Key Selling Points :
Automatic
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, PLC, Pressure vessel
Opening Stroke :
180MM
After-sales Service Provided :
Engineers available to service machinery overseas
screw diameter :
20cm 25cm 30cm
screw stroke :
100mm
Product name :
manual vertical injection molding machine for chip JTT-350
opening force :
6.5T

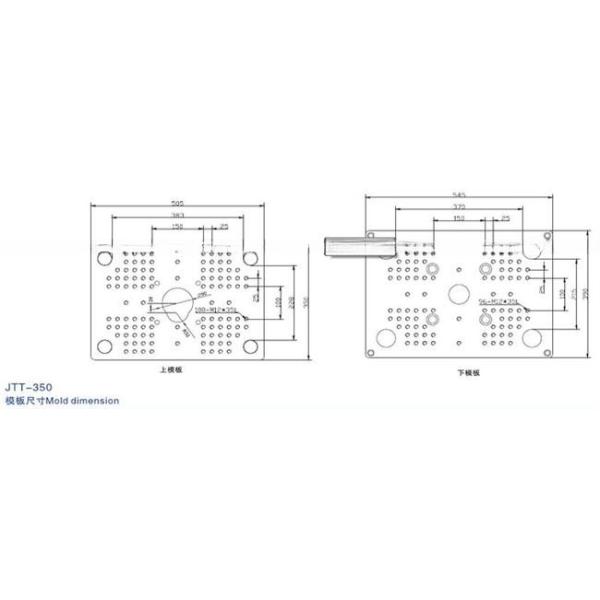

platen size :
545*390mm
max daylight :
340/280mm
min old height :
160/100mm
ejector force :
1.3T
Port :
SHENZHEN
Description

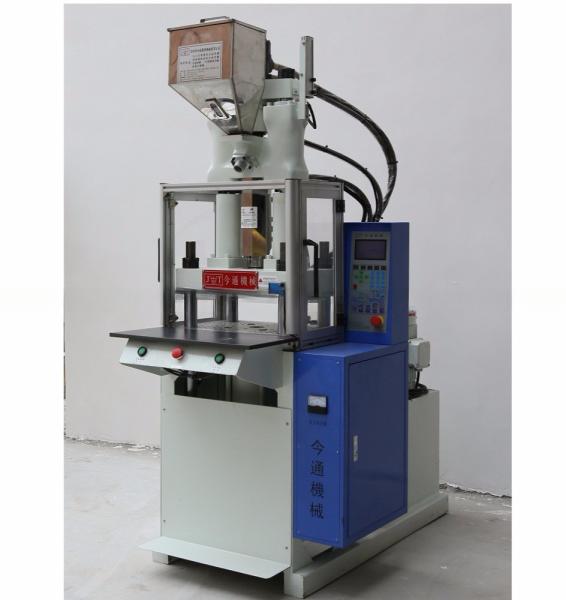

Max Daylight 340/280mm 35T Vertical Injection Molding Machine For Chip Automatic

Product Description

manual vertical injection molding machine for chip 35T JTT-350

Clamping Force: 35T

Injection Weight: 45-72g

Vertical clamping, vertical injection

Small volum, suitablefor small and medium insert parts molding;

Double injection cylinder system, high shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.

Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.


35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic

Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
Certifications
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
Detailed Images
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
Our Service
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

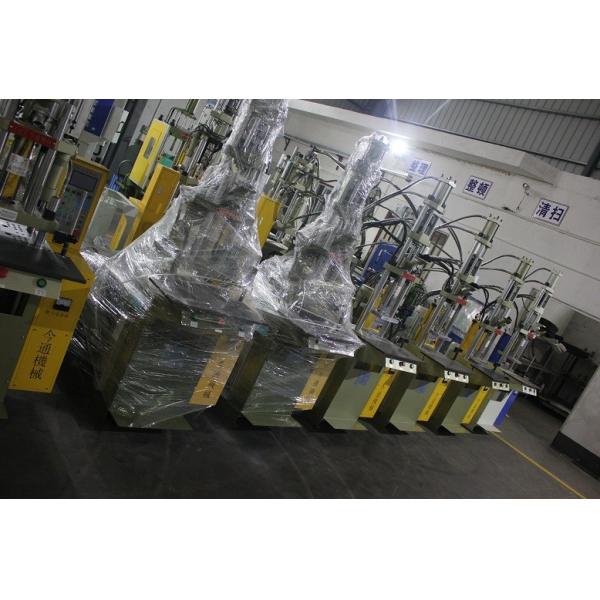

Packing & Delivery
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic

35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
35T Plastic Vertical Injection Moulding Machine Max Daylight 340/280mm For Chip Automatic
