High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
Specifications
Place of Origin :
Guangdong, China
Model Number :
JT-150
Brand Name :
JINTONG 15T
Packaging Details :
plywood for Small low pressure vertical plastic injection molding machine 15T
Supply Ability :
600 Piece/Pieces per Month Small low pressure vertical plastic injection molding machine 15
Price :
$3,450.00/pieces 1-4 pieces
Plastic Processed :
PP, PVC, PE
Condition :
New
Style :
VERTICAL
Plasticizing Capacity(g/s) :
45
Mold Height(mm) :
50 - 160 mm
Ejector Number :
1
Ejector Stroke(mm) :
35 mm
Ejector Force(kN) :
13 kN
Theoretical Shot Volume(cm³) :
49 cm³
Injection Rate (g/s) :
30 g/s
Machine Type :
Hydraulic
Injection Weight (g) :
45 g
Screw Speed (rpm) :
0 - 215 rpm
Screw diameter (mm) :
25 mm
Screw L/D Ratio :
22
Distance between Tie Bars :
260mm
Weight (KG) :
650 kg
Type :
Other
Open Stroke(mm) :
350 mm
Power (kW) :
6 kW
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, PLC, Pressure vessel
After-sales Service Provided :
Engineers available to service machinery overseas
screw diameter :
20mm 25mm
screw stroke :
100mm
Product name :
Small injection molding machine USB/MICRO connector 15T
opening force :
7T

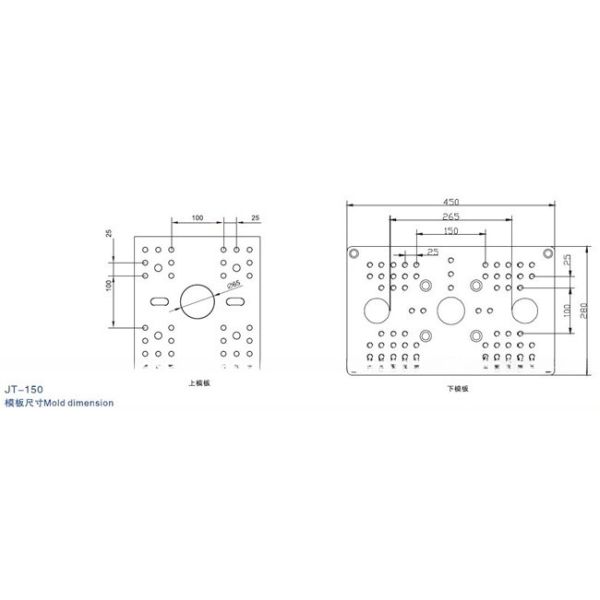

platen size :
450*280mm
max daylight :
260/200mm
min old height :
100/40mm
ejector force :
1.3T
Machine dimension(L*W*H) :
1.38*0.85*2.1m
Port :
SHENZHEN
Description

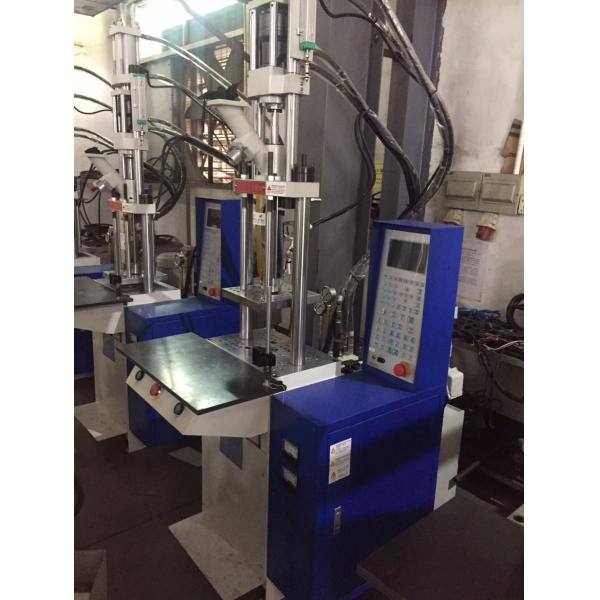

High Precision 15T Vertical Plastic Injection Molding Machine For USB/MICRO Connector

Product Description

Small vertical plastic injection molding machine USB/MICRO connecotr 15T JT-150

Clamping Force: 15T

Injection Weight: 29-45g

Vertical clamping, vertical injection

Small volum, suitablefor small and medium insert parts molding;

High shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.

Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.


High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector

Main Features

1) Vertical clamping, vertical injection, small volume, precise molding, available to small and medium hardware insert molding.
2)Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding
3) Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.
4) Optional energy-saving motor

Certifications
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
Detailed Images
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector
Our Service
High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

High Precision 15 Ton injection Molding Machine Vertical For USB/MICRO Connector

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
