30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
Specifications
Place of Origin :
Guangdong, China
Model Number :
JT-250
Brand Name :
JINTONG
Packaging Details :
plastic film packing for hand operated plastic injection moulding machine 30T
Supply Ability :
600 Piece/Pieces per Month hand operated plastic injection moulding machine 30T
Price :
$6,600.00/pieces 1-4 pieces
Plastic Processed :
PP, ABS, PVC, PE
Condition :
New
Style :
VERTICAL
Plasticizing Capacity(g/s) :
56
Mold Height(mm) :
85 - 250 mm
Ejector Number :
1
Ejector Stroke(mm) :
45 mm
Ejector Force(kN) :
13 kN
Theoretical Shot Volume(cm³) :
85 cm³
Injection Rate (g/s) :
80 g/s
Machine Type :
Hydraulic, Other
Injection Weight (g) :
72 g
Screw Speed (rpm) :
1 - 205 rpm
Screw diameter (mm) :
32 mm
Screw L/D Ratio :
22
Distance between Tie Bars :
340mm
Weight (KG) :
1100 kg
Type :
Other
Open Stroke(mm) :
350 mm
Power (kW) :
6.7 kW
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Pressure vessel
Injection Weight :
29-72G
Injection Rate :
30-80CM3/S
Opening Stroke :
100MM
After-sales Service Provided :
Engineers available to service machinery overseas
screw diameter :
20mm 25mm 30mm 32mm
screw stroke :
100mm
Product name :
hand operated plastic injection moulding machine 30T JT-250
opening force :
6.5T
platen size :
520*370mm
max daylight :
340/280mm
Port :
SHENZHEN
Description

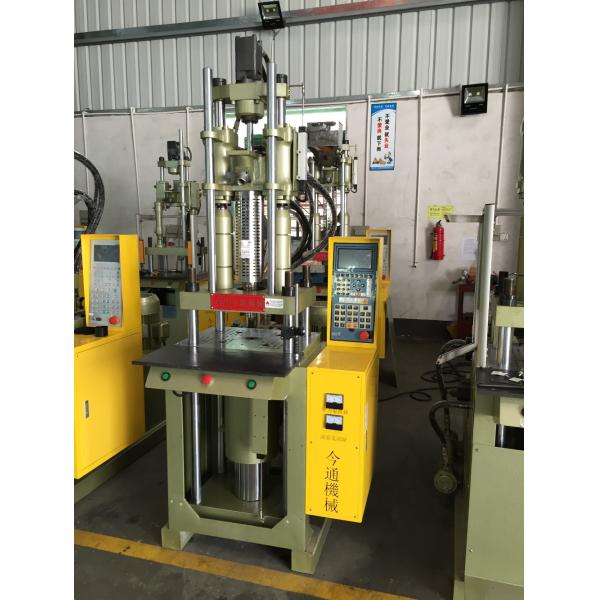

30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production

Product Description

Hand operated plastic injection moulding machine 30TJT-250

Clamping Force: 30T

Injection Weight: 29-72g

Vertical clamping, vertical injection

Small volum, suitablefor small and medium insert parts molding;

High shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.

Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.


30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production

Main Features

1) Vertical clamping, vertical injection, small volume, precise molding, available to small and medium hardware insert molding.
2)Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding
3) Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.
4) Optional energy-saving motor

Certifications
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production

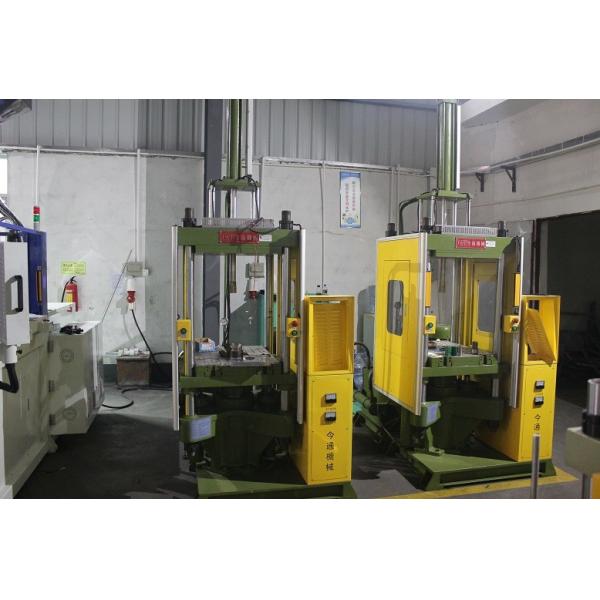

Detailed Images
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
Our Service
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

Packing & Delivery
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
30T VERTICAL Plastic Injection Moulding Machine For Small And Medium Scale Production
