Hydraulic Double Slide Injection Molding Machine 85T 267 Cm3 Theoretical Shot Volume

Specifications

Place of Origin :

Guangdong, China

Model Number :

JC-850DM

Brand Name :

JINTONG

Price :

$29,000.00/pieces 1-2 pieces

Plastic Processed :

PVC

Condition :

New

Style :

VERTICAL

Plasticizing Capacity(g/s) :

200

Mold Height(mm) :

110 - 450 mm

Ejector Number :

Ejector Stroke(mm) :

80 mm

Ejector Force(kN) :

25 kN

Theoretical Shot Volume(cm³) :

267 cm³

Injection Rate (g/s) :

122 g/s

Machine Type :

Hydraulic

Injection Weight (g) :

243 g

Screw Speed (rpm) :

1 - 168 rpm

Screw diameter (mm) :

45 mm

Screw L/D Ratio :

Distance between Tie Bars :

480mm

Weight (KG) :

5000 kg

Type :

Other

Open Stroke(mm) :

500 mm

Power (kW) :

18.5 kW

Warranty :

1 Year

Key Selling Points :

Energy saving

Applicable Industries :

Manufacturing Plant

Showroom Location :

None

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Warranty of core components :

1 Year

Core Components :

Bearing, Pump, PLC, Pressure vessel

After-sales Service Provided :

Free spare parts

product name :

85T plug injection molding machine

Application :

power plug

Keyword :

double slide table

Marketing Type :

Ordinary Product

Description

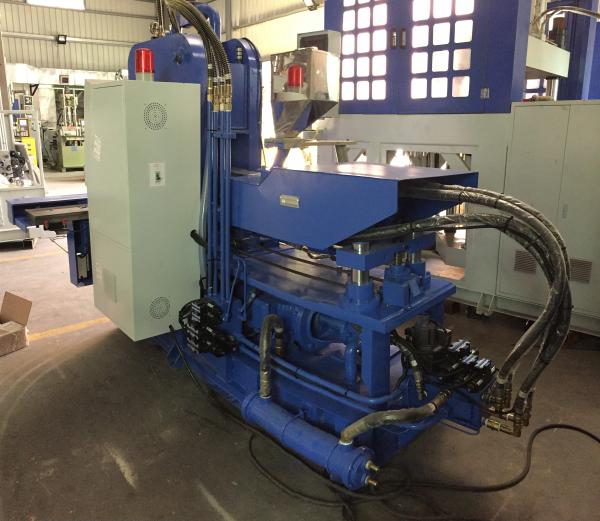

Hydraulic Double Slide Injection Molding Machine 85T 267 Cm3 Theoretical Shot Volume

Product Description

2017 SERVO plug double slide injection molding machine JC-850DM

Clamping Force: 85T

Injection Weight: 173-243g

Vertical clamping, horizontal injection
3 or 4 section temperature controller
Without column, easy to operation
Fixed low die and movable up die to avoid insert parts shift
Low pressure opening mold unit to protect mold safty
Alternative silde table or rotary table

	Model	UNIT	JC-850DM
INJECTION SYSTEM	Screw Diameter	mm	42 45 50
		Injection Pressure	kg/cm2	1429 1244 1008
		Theoretical Shot Volume	cm3	233 267 330
		PVC shot weight	g	255 293 360
		Injection Rate	cm3/sec	106 122 151
		Screw Stroke	mm	168
		Screw Speed	rpm	0-160
		Nozzle Contact Force	tons	3.9
		Nozzle Stroke	mm	150
		Number of Temperature Control	-	4
		Hopper Capacity	L	50
CLAMPING SYSTEM	Clamping Force	tons	85
		Opening Force	tons	13
		Platen Size	mm	840*330
		Distance Between Tie Bar	mm	-
		Min Mold Height	mm	210
		Opening Stroke	mm	270
		Max Open Daylight	mm	480
		Ejector Force	tons	2.5
		Ejector Stroke	mm	80
	Slide Stroke	mm	500
		Rotary Station	kg	--
		Max Mold Weight	kg	150
		Station Clearance	mm	±0.02
OIL PRESSURE SYSTEM	Max Hydraulic Pressure	kg/cm2	140
		Pump Output	L/min	65
		Oil Reservior Capacity	L	300
		Cooling Water Consumption	/hr	1000-1200
		Pump Moter Power	KW	11
		Barrel Heating Power	kw	7.5
		Total Power	kw	18.5
OTHER	Machine Weight	tons	5.8
OTHER		Machine Dimension	m	3.22.12.1

Main Features

1) Vertical clamping, horizontal injection, no tie bar
2) Single sliding table, one top die, one bottom die
3) The lower die can slip outside, and inserted action can be safer, and work efficiency improves. And also the finished goods release outside.
4) Use energy-saving motor to save 71% electricity power

Certifications

Detailed Images

Our Service

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

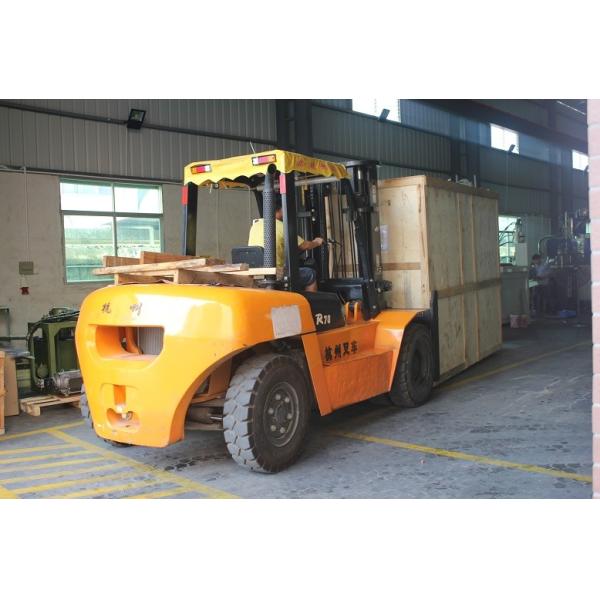

Packing & Delivery
