85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
Specifications
Brand Name :
JINTONG
Model Number :
JTT-850
Place of Origin :
Guangdong, China
MOQ :
1PC
Price :
$12,500.00/pieces 1-2 pieces
Supply Ability :
60 Piece/Pieces per Month Semi auto vertical plastic injection molding manufacturers 85T
Delivery Time :
35 days
Packaging Details :
plastic film packing for Semi auto vertical plastic injection molding machine factory 85T
Plastic Processed :
PC, PA, TR
Condition :
New
Style :
VERTICAL
Plasticizing Capacity(g/s) :
150
Mold Height(mm) :
250 - 500 mm
Ejector Number :
1
Ejector Stroke(mm) :
75 mm
Ejector Force(kN) :
33 kN
Theoretical Shot Volume(cm³) :
275 cm³
Injection Rate (g/s) :
167 g/s
Machine Type :
Hydraulic
Injection Weight (g) :
250 g
Screw Speed (rpm) :
0 - 205 rpm
Screw diameter (mm) :
50 mm
Screw L/D Ratio :
22
Distance between Tie Bars :
500mm
Weight (KG) :
4500 kg
Type :
Other
Open Stroke(mm) :
500 mm
Power (kW) :
21.6 kW
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, PLC, Pressure vessel
Injection Weight :
0-250G
Injection Rate :
82-167CM3/S
Opening Stroke :
250MM
screw diameter :
35mm 40mm 45mm 50mm
screw stroke :
140mm
opening force :
10.5T
platen size :
740*500mm
After-sales Service Provided :
Video technical support
Port :
SHENZHEN
Description

85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850

Product Description

85T glasses leg Vertical Plastic Injection Molding Machine PA JTT-850

Clamping Force: 85T

Max Injection Weight: 250g

Vertical clamping, vertical injection

Small volum, suitablefor small and medium insert parts molding;

High shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.

Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
Model
JTT-850
Injection system
Screw Diameter
mm
50
Injection Pressure
kg/cm2
1064
Theoretical Shot Volume
cm3
373
Max Shot Weight
g
339
Injection Rate
cm3/sec
167
Screw Stroke
mm
190
Screw Speed
rpm
0-200
Nozzle Contact Force
tons
2.9
Nozzle Stroke
mm
220
Number of Temperature Control
-
4
Hopper Capacity
L
30
Clamping system
Clamping Force
tons
85
Opening Force
tons
10.5
Platen Size
mm
740x500
Distance Between Tie Bar
mm
555*305
Min Mold Height
mm
250/200
Opening Stroke
mm
250
Max Open Daylight
mm
500/450
Ejector Force
tons
3.3
Ejector Stroke
mm
75
Oil pressure system
Max Hydraulic Pressure
kg/cm2
140
Pump Output
L/min
76
Oil Reservior Capacity
L
280
Cooling Water Consumption
/hr
1200-1500
Pump Moter Power
KW
15
Barrel Heating Power
kw
5.6
Total Power
kw
20..6
Other
Machine Weight
tons
3.5
Machine Dimension
M
1.8*1.30*3.01
Shipping Weight
tons
3.58(0.98/ 2.6)
Shipping Measurement
M
1*0.85*1.85 / 2.1*1.4*2.15
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850

Main Features

1) Vertical clamping, vertical injection, small volume, precise molding, available to small and medium hardware insert molding.
2)Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding
3) Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.
4) Optional energy-saving motor

MORE VIDEOS : https://www.youtube.com/channel/UCRNaDV0sigtynL-Q51NxWAw?view_as=subscriber

Certifications
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850

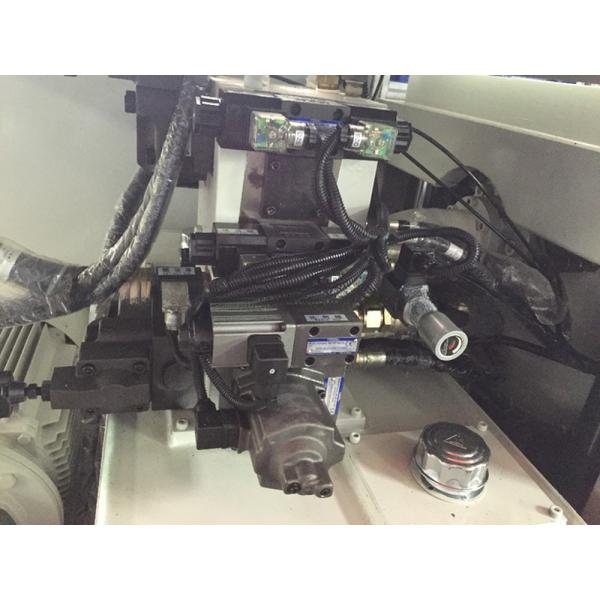

Detailed Images
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
Our Service
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

Packing & Delivery
85T Glasses Leg Vertical Plastic Injection Molding Machine PA JTT-850
