13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
Specifications
Place of Origin :
Guangdong, China
Model Number :
JC-550
Brand Name :
JINTONG
Packaging Details :
plywood for 2/3 pin plug vertical injection molding machine factory in Dongguan
Supply Ability :
60 Piece/Pieces per Month 2/3 pin plug vertical injection molding machine factory in China
Price :
$18,700.00/pieces 1-2 pieces
Plastic Processed :
PVC
Condition :
New
Style :
VERTICAL
Plasticizing Capacity(g/s) :
230
Mold Height(mm) :
110 - 400 mm
Ejector Number :
1
Ejector Stroke(mm) :
75 mm
Ejector Force(kN) :
13 kN
Theoretical Shot Volume(cm³) :
194 cm³
Injection Rate (g/s) :
83 g/s
Machine Type :
Hydraulic
Injection Weight (g) :
177 g
Screw Speed (rpm) :
1 - 140 rpm
Screw diameter (mm) :
42 mm
Screw L/D Ratio :
22
Distance between Tie Bars :
375mm
Weight (KG) :
3200 kg
Type :
Other
Open Stroke(mm) :
400 mm
Power (kW) :
13kW
Warranty :
1 Year
Key Selling Points :
Energy saving
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Pump, PLC, Pressure vessel
machine name :
plug 55T injection molding machine
max injection volume :
275
After-sales Service Provided :
Online support
After Warranty Service :
Video technical support
Port :
SHENZHEN
Description

375mm Distance Between Tie Bars Plug Vertical Plastic Injection Molding Machine 55T

Product Description

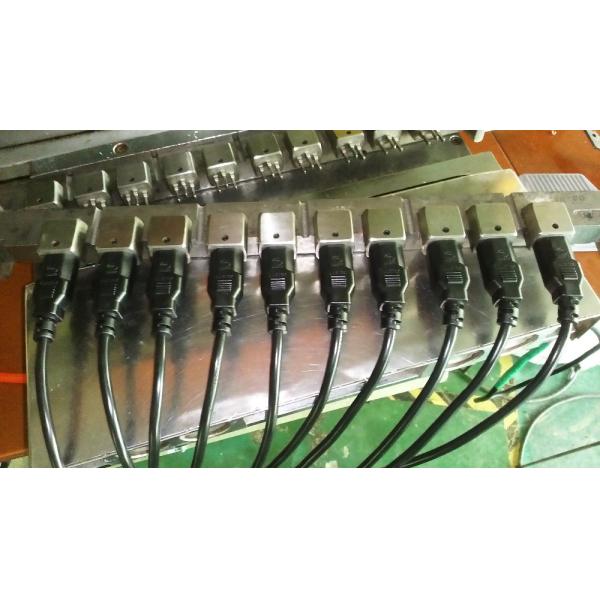

2/3 pin Plug vertical injection molding machine JC-550 in China Dongguan

Clamping Force: 55T

Injection Weight: 103-177g



Vertical clamping, horizontal injection
3 or 4 section temperature controller
Without column, easy to operation
Fixed low die and movable up die to avoid insert parts shift
Low pressure opening mold unit to protect mold safty
Alternative silde table or rotary table

13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant

Main Features

1) Vertical clamping, horizontal injection, no tie bar
2) Single sliding table, one top die, one bottom die
3) The lower die can slip outside, and inserted action can be safer, and work efficiency improves. And also the finished goods release outside.
4) Use energy-saving motor to save 71% electricity power

Certifications
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant

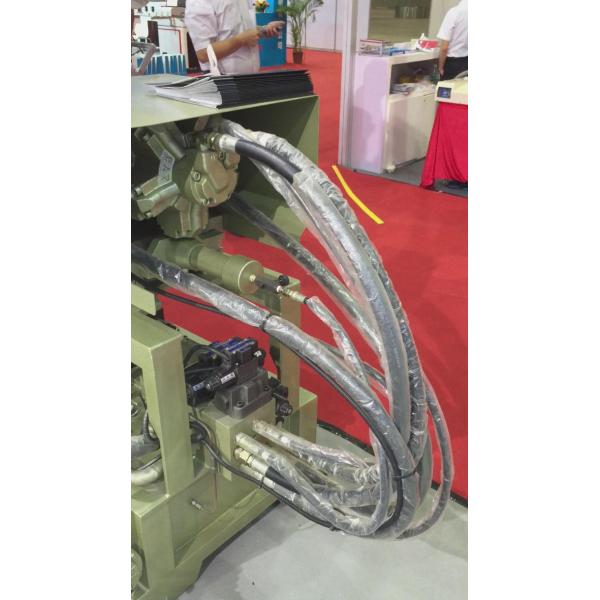

Detailed Images
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
Our Service
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant
13kW Vertical Plastic Injection Molding Machine 55T For Manufacturing Plant

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
