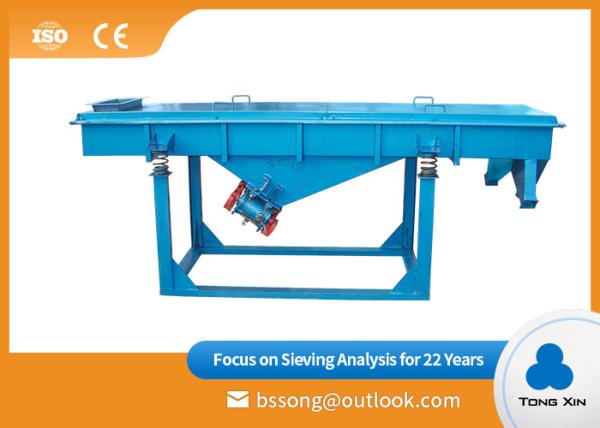

500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen
500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen
500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen
500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen
500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen
500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen
Specifications
Brand Name :
Tongxin
Model Number :
ZXS-525
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Delivery Time :
According to the order quantity
Packaging Details :
Export wooden case packing
Mesh :
2-400
Screen Size :
500*2500
Voltage :
380V
Power :
2*0.4
Dimension :
2576*558*990
Layers :
1-6
Material :
Carbon Steel
Color :
Green
Description

500*2500 1-6 Layers Washing Sand Industry Linear Vibrating Screen Machine​

Introduction

The linear vibration sieve machine is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device.

The excellent horizontal motors are used as the power source to make the material be sifted on the screen while moving forward in a straight line. It can be equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection, washing, dehydration and other purposes.

Technical Parameter

Model Size of Screen Surface Layer Mesh Size Capacity Double Amplitude Power Overall Dimension(L*W*H)

ZXS-525

 500*2500 1 2-200 0.06-8 5-7 2*0.4 2642*808*848
2 0.06-8 4-6 2*0.4 2699*808*878
3 0.06-8 6-8 2*0.75 2750*808*938
4 0.1-15 5-7 2*0.4 2813*808*1000
5 0.08-15 5-7 2*0.4 2813*808*1060
6 0.07-15 6-8 2*0.75 2953*808*1120

ZXS-830

 800*3000 1 0.1-20 6-8 2*0.75 3080*1098*1120
2 0.1-20 6-8 2*0.75 3140*1098*1180
3 0.1-20 6-8 2*1.5 3200*1098*1240

ZXS-1030

 1000*3000 1 0.1-20 6-8 2*0.75 3152*1340*1120
2 0.1-20 6-8 2*1.5 3219*1340*1120
3 0.1-20 6-8 2*1.5 3286*1340*1120

Features

Precision design Compact design and simple structure, it is easy to assembly, operate and maintain, ideally suited for automatical operation in production line.
High screening efficiency With high precision, large processing capacity, low noise and energy consumption, fully sealed design and no dust pollution.
Unique screen design Unique screen structure, cleaned and its screen mesh is easy change (3-5 minutes), suitable for variety of screens(nylon, pp)
Durable structure The coarse screen mesh fully supports the fine mesh, which can extend the life of the fine mesh, and reduce the cost of screen mesh.

Apply in Industry

Food industry Sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
Chemical industry Resin pigment, medicine, grease, paint, palette, etc.
Medicine Industry Pills, tablets, capsules, granules
Mechanical industry Casting sand, powder metallurgy, electromagnetic material and metal powder, etc
Paper-making industry Coated slurry, exhaust liquid, paper making liquid and waste water reclamation,
Organic fertilizer industry.
Plastics industry.
The Building industry:
Abrasive material and ceramic industry

Structure

500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen

Working Principle

500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen

Two vibration motors installed on the equipment which working in simultaneously and reverse rotation. The screen box supported by four springs produce reciprocating linear motion under the vibration force generated by motors.

When the vertical component of the vibration acceleration N is greater than acceleration due to gravity G, material in the tank was thrown up, press forward to jump along parabolic path.

Each vibration of tank, the material would be thrown up once. In the process of encounter with the screen, the material which is smaller than screen mesh can go through, so as to achieve classification purpose.

Our Service

1. Professional engineers team can choose the right equipment for you;

2. We can provide thorough after-sales service to ensure the proper use of machine.

3. We can provide OEM customization.

4. We Provide video installation instructions;

5. We offer 24-hour online consulting service.

If you want to get more information of product, please contact us!
