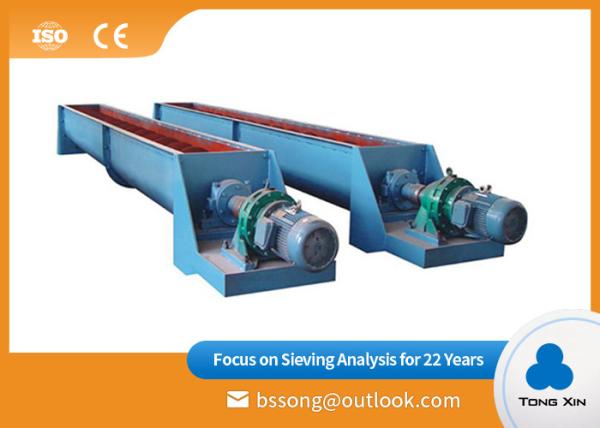

Stainless Vibratory Hopper Power Plant Screw Conveyor System Sand Transporter

Introduction

The screw conveyor generally consists of three parts: the conveyor body, the inlet and outlet, and the driving device. The spiral blades of the screw conveyor have three forms: solid spiral surface, belt spiral surface and blade spiral surface.

Among them, the blade spiral surface application It is relatively small, mainly used for conveying materials with high viscosity and compressibility. This type of screw suspension surface has the functions of stirring and mixing materials during the completion of the conveying operation.

Specifications

Diam100, 160,200,250,315,400,500,630,800,1000,1250mm length is from 4m to 70m , every 8.5m is first gearl, when the length is more than 35m, it adopt to double-end drive. When select the model, it should conform to the standard nominal length, and can propose the special needs separately.

Features

1. Shaft-less structure, less contact with the residue, low friction, the extrusion efficiency can be improved. No clogging and no winding.

2. Made of stainless steel with high strength, good corrosion resistance and long service life.

3. Driving device adopts axle direct drive mode, which is stable, reliable, and energy saving.

4. Outlet is assembled with a spring baffle to increase the extrusion pressure and increase the dehydration rate.

5. Except for the inlet and outlet, the rest structure is closed, and the environment is clean and sanitary.

Application

LS screw conveyor of transporting material requirements: powdery, granular and small block material, such as the cement, coal dust, grain, fertilizer, ash residue, and sand and so on.

The material temperature shall not exceed 200 ℃, and the screw conveyor is unfavorable to delivery perishable, big viscous and easy to agglomerate material. Because these material will be bond in the screws when conveying, and then rotate not moving forward, or in the suspension bearing place form material product plug and make the screw machine can't work normally

Working Principle

The screw conveyor compared with the GX series, besides the bearing of head parts and end parts are moved into the body, the hanger bearing is adopted the rolling bearing and wheel bearing swap structure, and are equipped with dust seal device.

The sealing elements are made with nylon plastic, so it's with good tightness, wear resistance, low resistance and long life. The sliding bearing bush has the cast copper tile of adding lubricant, alloy and grinding cast iron tile and copper cornerstone ink less oil lubrication tile. The discharge end are with the cleaning device.

The overall unit is with low noise, well-adapted, convenient operation and maintenance and feeding and discharge port position arrangement flexibility.

Technical Parameters

Packing

Our Service

1. We Provide video installation instructions;

2. We offer 24-hour online consulting service;

3. 20 years production experience to ensure quality;

4. We have thorough data to ensure the quality;

5. We provide detailed instruction an product information;

6. We provide 12 months quality warranty.

If you want to get more information of product, please contact us!
